Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > ACDBAT360-HF

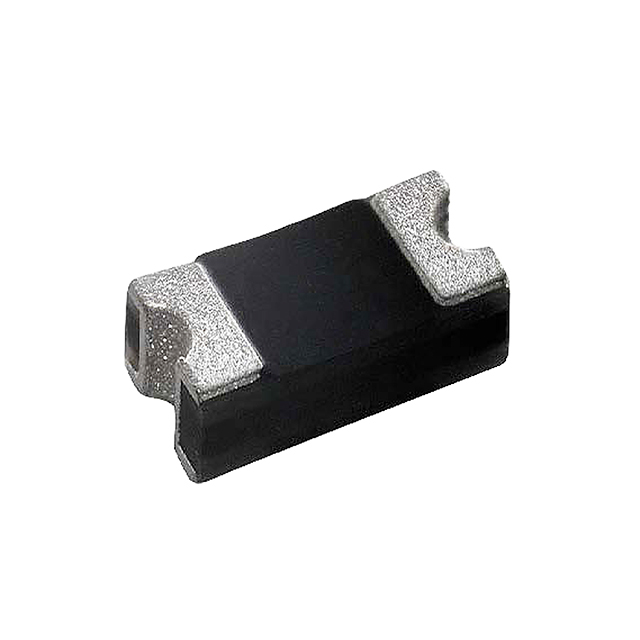

ACDBAT360-HF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACDBAT360-HF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ACDBAT360-HF
Manufacturer	Comchip Technology
Description	DIODE SCHOTTKY 60V 3A 2010
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 400189 pcs
Reference Price (In US Dollars)	3000 pcs
Reference Price (In US Dollars)	$0.056

Product parameter
Data sheet

Product parameter

Part Number	ACDBAT360-HF	Manufacturer	Comchip Technology
Description	DIODE SCHOTTKY 60V 3A 2010	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	400189 pcs	Data sheet	ACDBAT320-HF thru 3100-HF
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	700mV @ 3A
Voltage - DC Reverse (Vr) (Max)	60V	Supplier Device Package	2010
Speed	Fast Recovery = 200mA (Io)	Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)	Package / Case	2010 (5025 Metric)
Other Names	641-1609-2	Operating Temperature - Junction	-55°C ~ 150°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Schottky	Detailed Description	Diode Schottky 60V 3A Surface Mount 2010
Current - Reverse Leakage @ Vr	500µA @ 60V	Current - Average Rectified (Io)	3A
Capacitance @ Vr, F	180pF @ 4V, 1MHz
