IPC0109

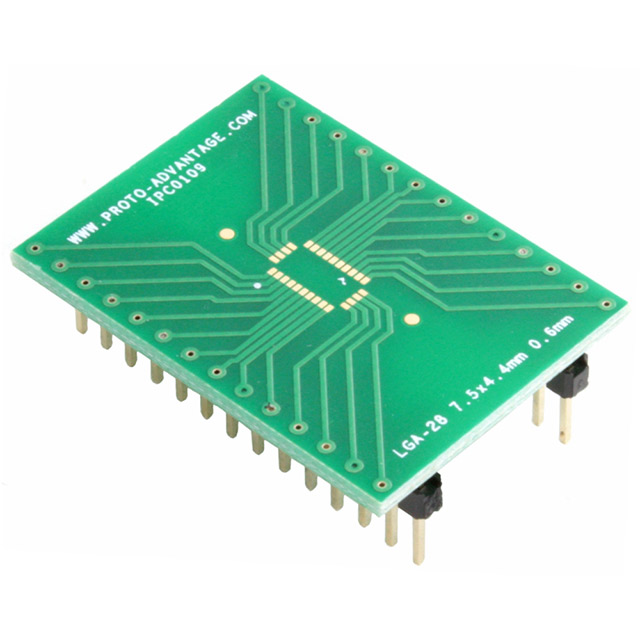

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPC0109 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPC0109 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IPC0109 |
|---|---|
| Manufacturer | Chip Quik, Inc. |
| Description | LGA-28 TO DIP-28 SMT ADAPTER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $4.095 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IPC0109 | Manufacturer | Chip Quik, Inc. |
|---|---|---|---|
| Description | LGA-28 TO DIP-28 SMT ADAPTER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8210 pcs | Data sheet | Pin Assembly InstrIPC0109Adapter Selection Guide |
| Category | Prototyping, Fabrication Products | Size / Dimension | 1.000" x 1.400" (25.40mm x 35.56mm) |
| Series | Proto-Advantage | Proto Board Type | SMD to DIP |
| Pitch | 0.024" (0.60mm) | Package Accepted | LGA |
| Number of Positions | 28 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material | FR4 Epoxy Glass | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Board Thickness | 0.062" (1.57mm) 1/16" |
