IPC0066-S

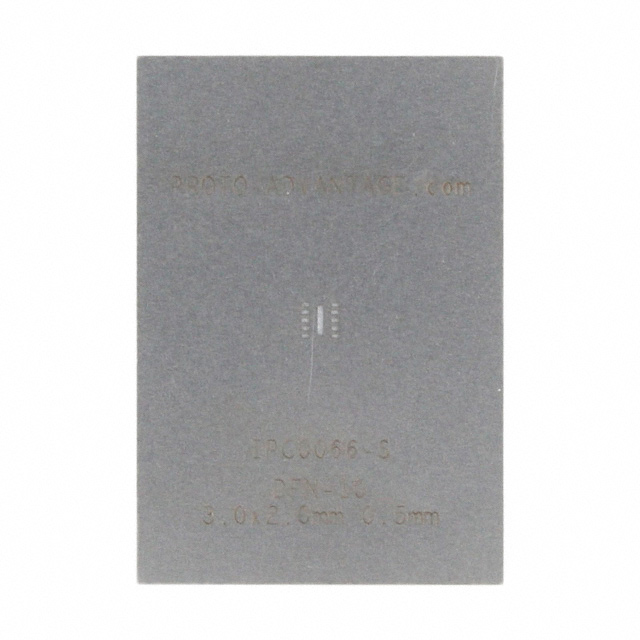

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPC0066-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPC0066-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IPC0066-S |
|---|---|
| Manufacturer | Chip Quik, Inc. |
| Description | DFN-10 STENCIL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $4.121 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IPC0066-S | Manufacturer | Chip Quik, Inc. |
|---|---|---|---|
| Description | DFN-10 STENCIL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8639 pcs | Data sheet | Stencil Selection GuildeIPC0066-SCircuit Assembly Instr |
| Category | Soldering, Desoldering, Rework Products | Type | DFN |
| Thickness | 0.0040" (0.102mm) | Thermal Center Pad | 0.033" L x 0.094" W (0.85mm x 2.40mm) |
| Series | Proto-Advantage | Pitch | 0.020" (0.50mm) |
| Outer Dimension | 0.900" L x 1.300" W (22.86mm x 33.02mm) | Number of Positions | 10 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material | Stainless Steel |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inner Dimension | 0.118" L x 0.079" W (3.00mm x 2.00mm) |
