Home > Products > Switches > Rocker Switches > KTG2BNB1BBBNNN

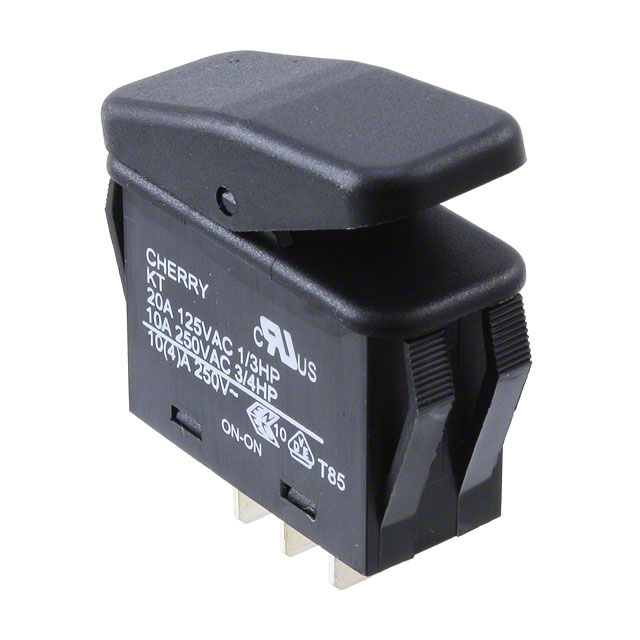

KTG2BNB1BBBNNN

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy KTG2BNB1BBBNNN with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	KTG2BNB1BBBNNN
Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH ROCKER SPDT 20A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 26198 pcs
Reference Price (In US Dollars)	500 pcs
Reference Price (In US Dollars)	$1.371

Product parameter
Data sheet

Product parameter

Part Number	KTG2BNB1BBBNNN	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH ROCKER SPDT 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	26198 pcs	Data sheet	KT Series Datasheet
Category	Switches	Voltage Rating - DC	14V
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.250" (6.3mm)
Switch Function	On-On	Series	KT
Panel Cutout Dimensions	Rectangular - 36.80mm x 15.20mm	Packaging	Bulk
Other Names	CH958	Operating Temperature	-20°C ~ 85°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP56 - Dust Protected, Water Resistant
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	6,000 Cycles
Detailed Description	Rocker Switch SPDT 20A (AC), 21A (DC) 125V Panel Mount, Snap-In	Current Rating	20A (AC), 21A (DC)
Color - Actuator/Cap	Black	Circuit	SPDT
Actuator Type	Convex (Reverse V)	Actuator Marking	No Marking
