Home > Products > Switches > Rocker Switches > KGC3ANB1BBD

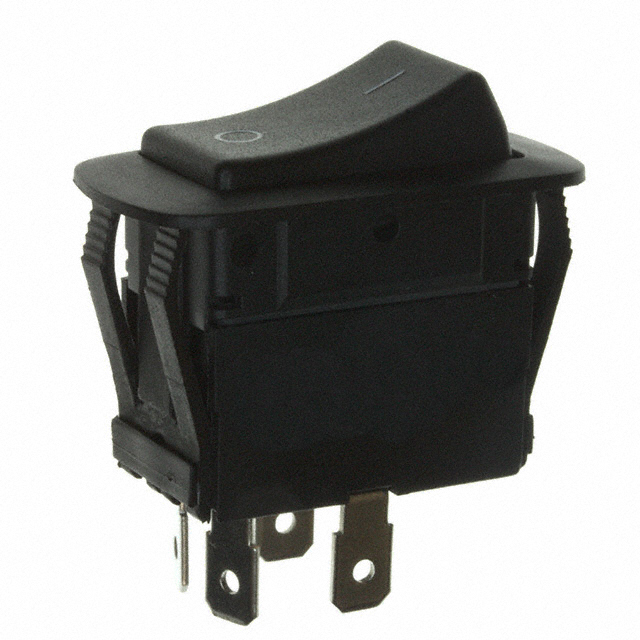

KGC3ANB1BBD

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy KGC3ANB1BBD with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	KGC3ANB1BBD
Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH ROCKER DPST 20A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 20909 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.53	$2.344	$2.221	$2.19
	$2.159	$2.098	$1.913	$1.727

Product parameter
Data sheet

Product parameter

Part Number	KGC3ANB1BBD	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH ROCKER DPST 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20909 pcs	Data sheet	KG Series Datasheet
Category	Switches	Voltage Rating - DC	14V
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.250" (6.3mm)
Switch Function	On-Off	Series	KG
Panel Cutout Dimensions	Rectangular - 36.60mm x 21.20mm	Packaging	Bulk
Other Names	CH952	Operating Temperature	-20°C ~ 85°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP56 - Dust Protected, Water Resistant
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	6,000 Cycles
Detailed Description	Rocker Switch DPST 20A (AC), 21A (DC) 125V Panel Mount, Snap-In	Current Rating	20A (AC), 21A (DC)
Color - Actuator/Cap	Black	Circuit	DPST
Actuator Type	Concave (Curved)	Actuator Marking	O -
