Home > Products > Switches > Snap Action, Limit Switches > E79-00A

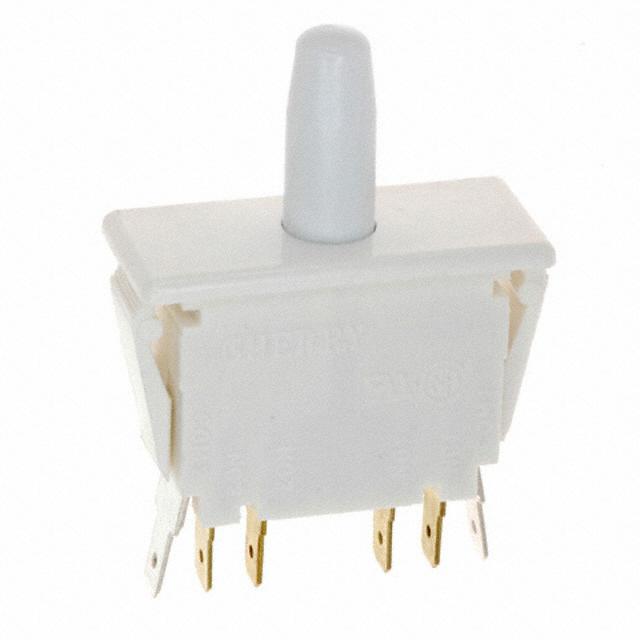

E79-00A

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy E79-00A with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	E79-00A
Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION DPDT 10A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 20118 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.537	$2.829	$2.688	$2.617
	$2.263	$2.122	$2.016	$1.945

Product parameter
Data sheet

Product parameter

Part Number	E79-00A	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION DPDT 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20118 pcs	Data sheet	E75-E79 Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.187" (4.7mm)	Switch Function	On-Mom
Series	E	Release Force	-
Pretravel	0.125" (3.2mm)	Packaging	Bulk
Overtravel	0.375" (9.5mm)	Other Names	0E79-00A 0E79-00A0 0E7900A0 CH157 E79-00A0 E7900A
Operating Temperature	-40°C ~ 85°C	Operating Position	0.720" (18.3mm)
Operating Force	680gf	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	-
Electrical Life	6,000 Cycles	Differential Travel	0.075" (1.9mm)
Current Rating	10A (AC)	Circuit	DPDT
Actuator Type	Round (Pin Plunger)
