Home > Products > Switches > Snap Action, Limit Switches > E23-85HX

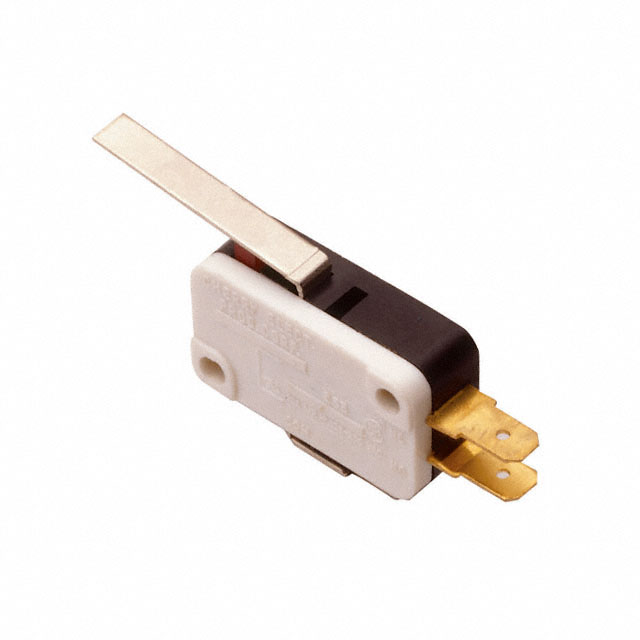

E23-85HX

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy E23-85HX with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	E23-85HX
Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION SPDT 5A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4201 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	E23-85HX	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION SPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4201 pcs	Data sheet	E Series Miniture E21-23, E31, E33-36
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.187" (4.7mm)	Switch Function	On-Mom
Series	E	Release Force	-
Pretravel	0.500" (12.7mm)	Packaging	Bulk
Overtravel	0.312" (7.9mm)	Other Names	0E2385HX CH348 E2385HX0
Operating Temperature	-40°C ~ 85°C	Operating Position	0.600" (15.2mm)
Operating Force	6.000gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	6,000 Cycles
Differential Travel	0.100" (2.54mm)	Current Rating	5A (AC)
Circuit	SPDT	Actuator Type	Lever, Straight
