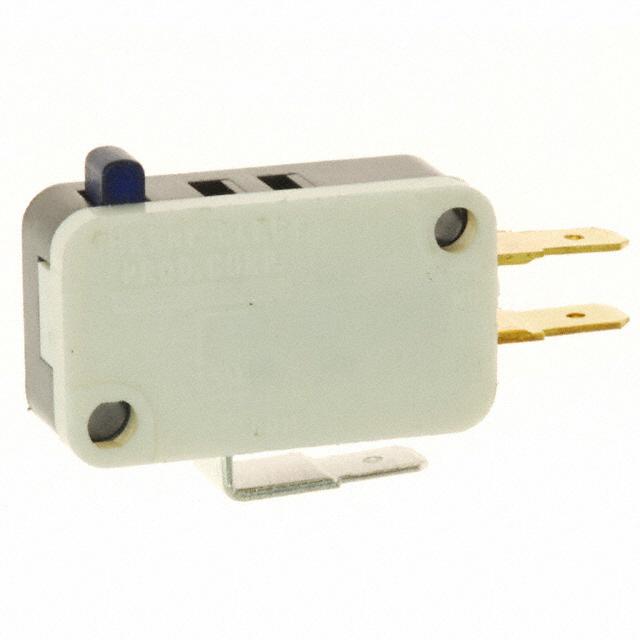

E22-00AX
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy E22-00AX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy E22-00AX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | E22-00AX |
|---|---|
| Manufacturer | Cherry Switches (ZF Electronics) |
| Description | SWITCH SNAP ACTION SPDT 3A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | E22-00AX | Manufacturer | Cherry Switches (ZF Electronics) |
|---|---|---|---|
| Description | SWITCH SNAP ACTION SPDT 3A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5646 pcs | Data sheet | E Series Miniture E21-23, E31, E33-36 |
| Category | Switches | Voltage Rating - DC | 125V |
| Voltage Rating - AC | 125V | Termination Style | Quick Connect - 0.187" (4.7mm) |
| Switch Function | On-Mom | Series | E |
| Release Force | - | Pretravel | 0.047" (1.2mm) |
| Packaging | Bulk | Overtravel | 0.050" (1.27mm) |
| Other Names | 0E2200AX CH335 E2200AX0 |
Operating Temperature | -40°C ~ 85°C |
| Operating Position | 0.579" (14.7mm) | Operating Force | 15gf |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | - |
| Electrical Life | 6,000 Cycles | Differential Travel | 0.010" (0.25mm) |
| Current Rating | 3A (AC), 100mA (DC) | Circuit | SPDT |
| Actuator Type | Round (Pin Plunger) |
