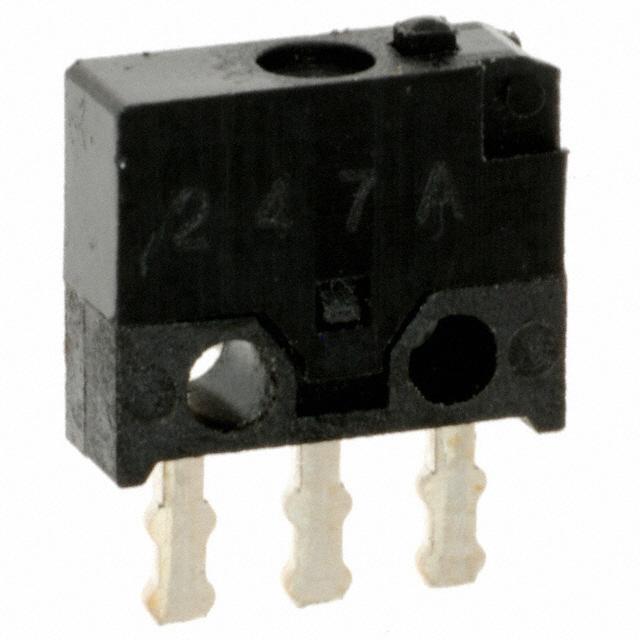

DH3C-B1AA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DH3C-B1AA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DH3C-B1AA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DH3C-B1AA |
|---|---|
| Manufacturer | Cherry Switches (ZF Electronics) |
| Description | SWITCH SNAP ACTION SPDT 300MA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DH3C-B1AA | Manufacturer | Cherry Switches (ZF Electronics) |
|---|---|---|---|
| Description | SWITCH SNAP ACTION SPDT 300MA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5803 pcs | Data sheet | DH3C-B1AA DrawingDH Series |
| Category | Switches | Voltage Rating - DC | 30V |
| Termination Style | Solder Lug | Switch Function | On-Mom |
| Series | DH | Release Force | - |
| Pretravel | 0.008" (0.2mm) | Packaging | Bulk |
| Overtravel | 0.004" (0.1mm) | Other Names | CH841 DH3CB1AA |
| Operating Temperature | -25°C ~ 70°C | Operating Position | 0.220" (5.6mm) |
| Operating Force | 90gf | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Electrical Life | - |
| Differential Travel | 0.003" (0.075mm) | Current Rating | 300mA (DC) |
| Circuit | SPDT | Actuator Type | Round (Pin Plunger) |
