DG13-B1LA

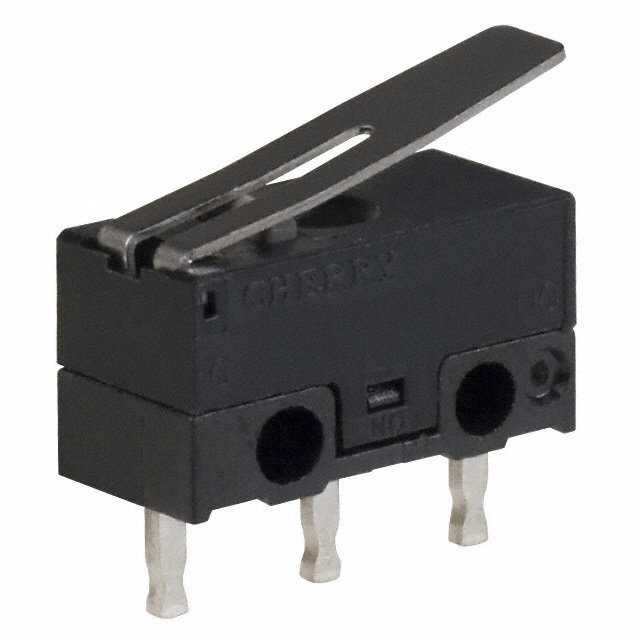

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DG13-B1LA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DG13-B1LA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DG13-B1LA |
|---|---|
| Manufacturer | Cherry Switches (ZF Electronics) |
| Description | SWITCH SNAP ACTION SPDT 3A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.848 | $0.782 | $0.734 | $0.717 | $0.571 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.538 | $0.505 | $0.473 | $0.44 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DG13-B1LA | Manufacturer | Cherry Switches (ZF Electronics) |
|---|---|---|---|
| Description | SWITCH SNAP ACTION SPDT 3A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86498 pcs | Data sheet | DG Series |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | PC Pin |
| Switch Function | On-Mom | Series | DG |
| Release Force | - | Pretravel | 0.071" (1.8mm) |
| Packaging | Bulk | Overtravel | 0.022" (0.55mm) |
| Other Names | CH165 DG13B1LA DG1C-B1LA |
Operating Temperature | -25°C ~ 85°C |
| Operating Position | 0.268" (6.8mm) | Operating Force | 45gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 1,000,000 Cycles | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP40 |
| Features | - | Electrical Life | 10,000 Cycles |
| Differential Travel | 0.020" (0.5mm) | Current Rating | 3A (AC), 2A (DC) |
| Circuit | SPDT | Actuator Type | Lever, Straight |
