Home > Products > Switches > Snap Action, Limit Switches > D413-R1AA-G2

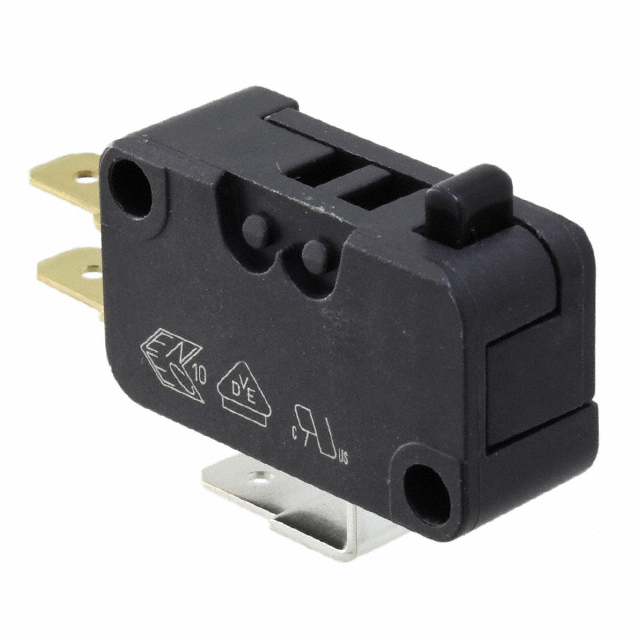

D413-R1AA-G2

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D413-R1AA-G2 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D413-R1AA-G2
Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACT SPDT 100MA 250V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 34185 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.873	$1.497	$1.422	$1.385
	$1.198	$1.123	$1.067	$1.029

Product parameter
Data sheet

Product parameter

Part Number	D413-R1AA-G2	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACT SPDT 100MA 250V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34185 pcs	Data sheet	D4 Series Datasheet D413-R1AA Drawing
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	250V	Termination Style	Quick Connect - 0.187" (4.7mm)
Switch Function	On-Mom	Series	D4
Release Force	46gf	Pretravel	0.047" (1.2mm)
Packaging	Bulk	Overtravel	0.051" (1.3mm)
Other Names	CH987 D413-R1AA D413-R1AA-ND	Operating Temperature	-40°C ~ 85°C
Operating Position	0.579" (14.7mm)	Operating Force	173gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	23 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	50,000 Cycles
Differential Travel	0.012" (0.3mm)	Current Rating	100mA (AC), 500mA (DC)
Circuit	SPDT	Actuator Type	Round (Pin Plunger)
