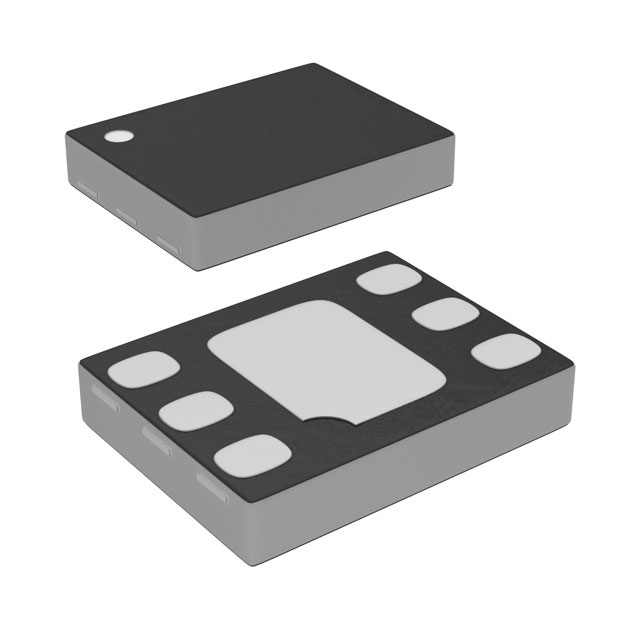

CTLDM7120-M621H TR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CTLDM7120-M621H TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CTLDM7120-M621H TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CTLDM7120-M621H TR |
|---|---|
| Manufacturer | Central Semiconductor |
| Description | MOSFET N-CH 20V 1A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.131 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CTLDM7120-M621H TR | Manufacturer | Central Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 20V 1A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 145468 pcs | Data sheet | CTLDM7120-M621H |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1.2V @ 1mA |
| Vgs (Max) | 8V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TLM621H | Series | - |
| Rds On (Max) @ Id, Vgs | 100 mOhm @ 500mA, 4.5V | Power Dissipation (Max) | 1.6W (Ta) |
| Packaging | Tape & Reel (TR) | Package / Case | 6-XFDFN Exposed Pad |
| Other Names | CTLDM7120-M621H TR PBFREE CTLDM7120-M621H TR-ND CTLDM7120-M621HTR |
Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 220pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 2.4nC @ 4.5V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Drain to Source Voltage (Vdss) | 20V | Detailed Description | N-Channel 20V 1A (Ta) 1.6W (Ta) Surface Mount TLM621H |
| Current - Continuous Drain (Id) @ 25°C | 1A (Ta) |
