Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > CMSH3-100MFL TR13

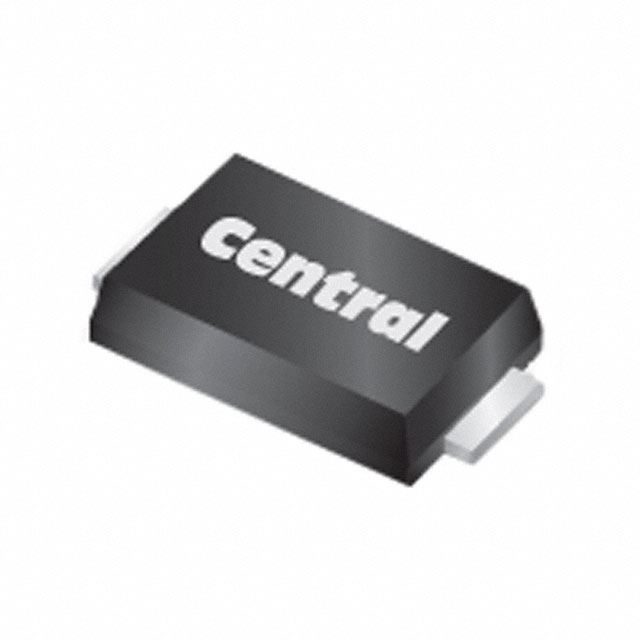

CMSH3-100MFL TR13

CMSH3-100MFL TR13

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CMSH3-100MFL TR13 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CMSH3-100MFL TR13
Manufacturer	Central Semiconductor
Description	DIODE SCHOTTKY 100V 3A SMAFLAT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 337917 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$0.196	$0.165	$0.124	$0.091	$0.07

Product parameter
Data sheet

Product parameter

Part Number	CMSH3-100MFL TR13	Manufacturer	Central Semiconductor
Description	DIODE SCHOTTKY 100V 3A SMAFLAT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	337917 pcs	Data sheet	CMSH3-100,150,200MFL
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	800mV @ 3A
Voltage - DC Reverse (Vr) (Max)	100V	Supplier Device Package	SMAflat
Speed	Fast Recovery = 200mA (Io)	Series	-
Packaging	Cut Tape (CT)	Package / Case	DO-221AC, SMA Flat Leads
Other Names	CMSH3-100MFL CT CMSH3-100MFL CT-ND CMSH3-100MFLCT	Operating Temperature - Junction	-65°C ~ 150°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Schottky	Detailed Description	Diode Schottky 100V 3A Surface Mount SMAflat
Current - Reverse Leakage @ Vr	50µA @ 100V	Current - Average Rectified (Io)	3A
Capacitance @ Vr, F	110pF @ 4V, 1MHz
