CJD45H11 TR13

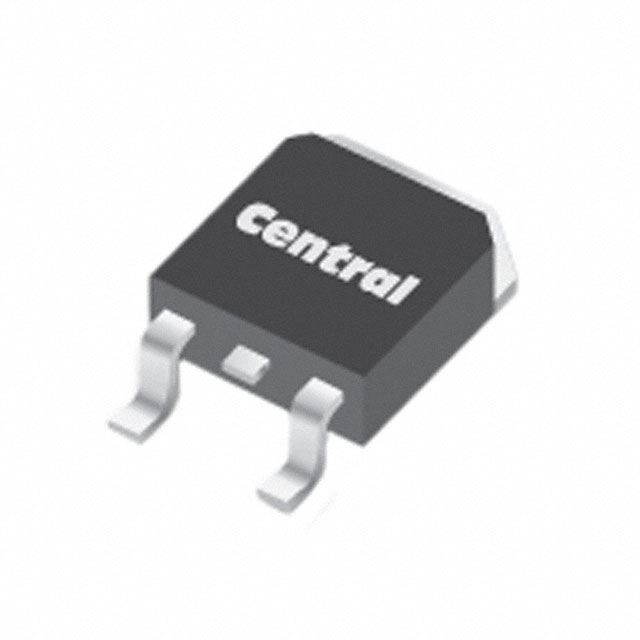

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CJD45H11 TR13 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CJD45H11 TR13 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CJD45H11 TR13 |
|---|---|
| Manufacturer | Central Semiconductor |
| Description | TRANS PNP 80V 8A DPAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.796 | $0.72 | $0.642 | $0.578 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.514 | $0.45 | $0.373 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CJD45H11 TR13 | Manufacturer | Central Semiconductor |
|---|---|---|---|
| Description | TRANS PNP 80V 8A DPAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83258 pcs | Data sheet | CJD44H11, CJD45H11 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 80V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 400mA, 8A | Transistor Type | PNP |
| Supplier Device Package | DPAK | Series | - |
| Power - Max | 1.75W | Packaging | Cut Tape (CT) |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | Other Names | CJD45H11 TR13-CT CJD45H11 TR13-CT-ND CJD45H11TR13-CT |
| Operating Temperature | -65°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Transition | 50MHz | Detailed Description | Bipolar (BJT) Transistor PNP 80V 8A 50MHz 1.75W Surface Mount DPAK |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 4A, 1V | Current - Collector Cutoff (Max) | 10µA |
| Current - Collector (Ic) (Max) | 8A |
