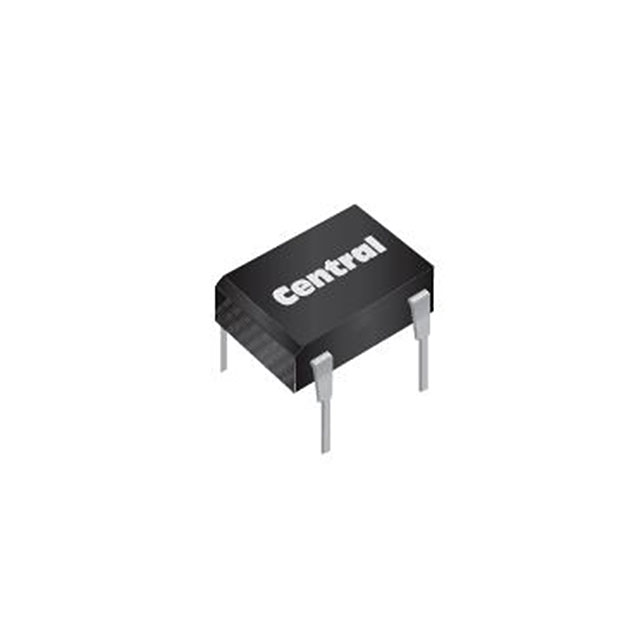

CBR1-D100
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CBR1-D100 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CBR1-D100 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CBR1-D100 |
|---|---|
| Manufacturer | Central Semiconductor |
| Description | RECT BRIDGE 1A 1KV 4DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $0.839 | $0.758 | $0.677 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CBR1-D100 | Manufacturer | Central Semiconductor |
|---|---|---|---|
| Description | RECT BRIDGE 1A 1KV 4DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57760 pcs | Data sheet | CBR1-D0x0, CBR1-D100 Series |
| Category | Discrete Semiconductor Products | Voltage - Peak Reverse (Max) | 1kV |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 1A | Technology | Standard |
| Supplier Device Package | 4-DIP | Series | - |
| Packaging | Tube | Package / Case | 4-EDIP (0.300", 7.62mm) |
| Other Names | CBR1-D100 PBFREE CBR1-D100-5 CBR1-D100H |
Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Single Phase | Detailed Description | Bridge Rectifier Single Phase Standard 1kV Through Hole 4-DIP |
| Current - Reverse Leakage @ Vr | 10µA @ 1000V | Current - Average Rectified (Io) | 1A |
