2N5116

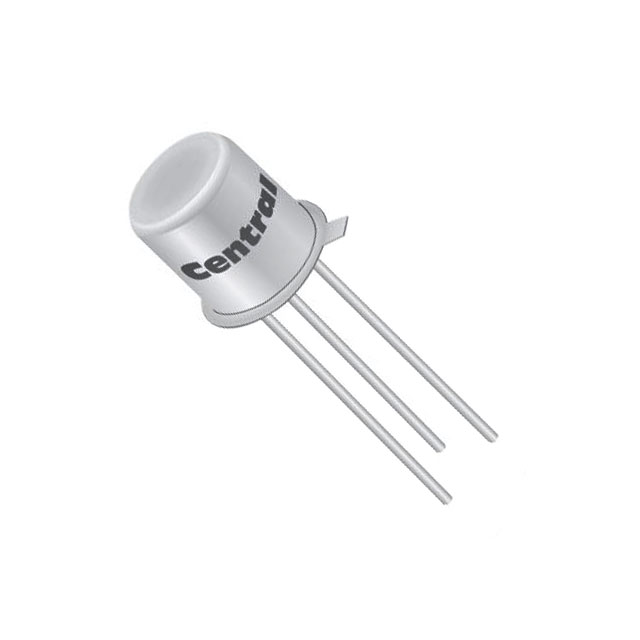

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2N5116 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2N5116 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2N5116 |
|---|---|
| Manufacturer | Central Semiconductor |
| Description | JFET P-CH 30V 0.5W TO18 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.724 | $2.431 | $1.994 | $1.615 | $1.362 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 2N5116 | Manufacturer | Central Semiconductor |
|---|---|---|---|
| Description | JFET P-CH 30V 0.5W TO18 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22038 pcs | Data sheet | 2N5114 - 2N5116 |
| Category | Discrete Semiconductor Products | Voltage - Cutoff (VGS off) @ Id | 1V @ 1nA |
| Voltage - Breakdown (V(BR)GSS) | 30V | Supplier Device Package | TO-18 |
| Series | - | Resistance - RDS(On) | 150 Ohms |
| Power - Max | 500mW | Packaging | Tube |
| Package / Case | TO-206AA, TO-18-3 Metal Can | Other Names | 2N5116 PBFREE 2N5116CS |
| Operating Temperature | -65°C ~ 200°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 25pF @ 15V |
| FET Type | P-Channel | Detailed Description | JFET P-Channel 30V 500mW Through Hole TO-18 |
| Current - Drain (Idss) @ Vds (Vgs=0) | 5mA @ 15V |
