2N3584

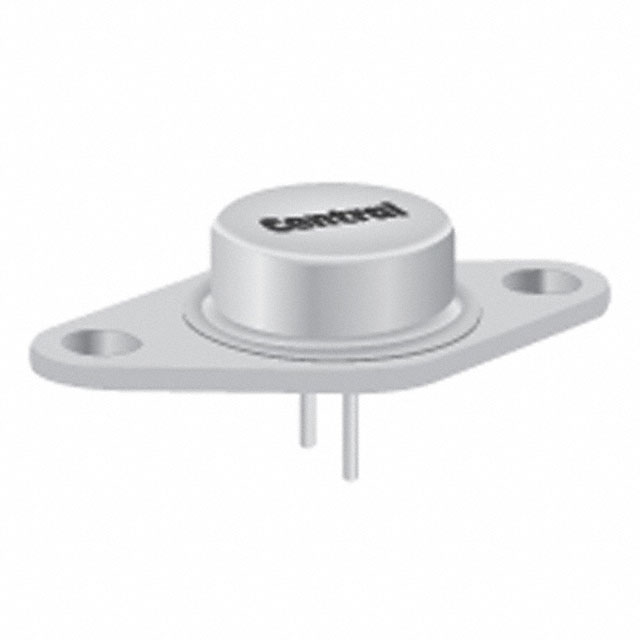

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2N3584 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2N3584 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2N3584 |
|---|---|
| Manufacturer | Central Semiconductor |
| Description | TRANS NPN 250V 2A TO-66 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | ||
|---|---|---|---|---|---|
| $4.521 | $4.111 | $3.803 | |||
| 120 pcs | 270 pcs | 510 pcs | |||
| $3.495 | $3.186 | $2.981 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2N3584 | Manufacturer | Central Semiconductor |
|---|---|---|---|
| Description | TRANS NPN 250V 2A TO-66 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10062 pcs | Data sheet | 2N3583 thru 2N3585 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 250V |
| Vce Saturation (Max) @ Ib, Ic | 750mV @ 125mA, 1A | Transistor Type | NPN |
| Supplier Device Package | TO-66 | Series | - |
| Power - Max | 35W | Packaging | Tube |
| Package / Case | TO-213AA, TO-66-2 | Other Names | 2N3584 LEAD FREE 2N3584 PBFREE |
| Operating Temperature | -65°C ~ 200°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Transition | 10MHz |
| Detailed Description | Bipolar (BJT) Transistor NPN 250V 2A 10MHz 35W Through Hole TO-66 | DC Current Gain (hFE) (Min) @ Ic, Vce | 25 @ 1A, 10V |
| Current - Collector Cutoff (Max) | 5mA | Current - Collector (Ic) (Max) | 2A |
