2N2222

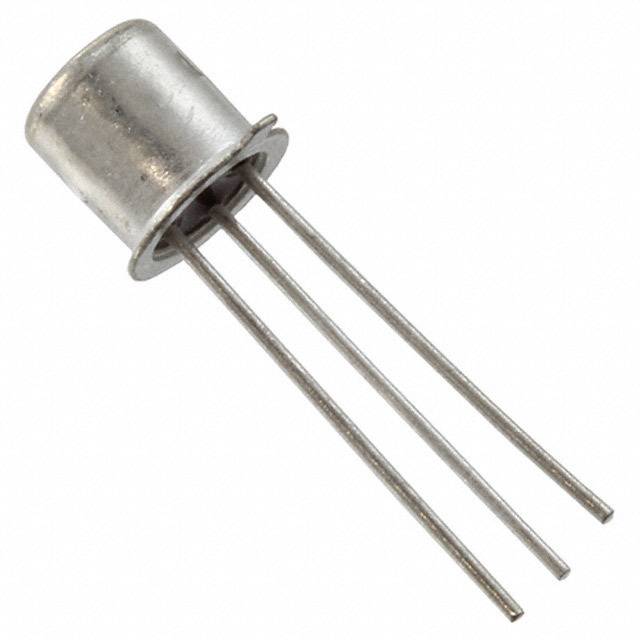

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2N2222 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2N2222 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2N2222 |
|---|---|
| Manufacturer | Central Semiconductor |
| Description | TRANS NPN 30V 0.8A TO-18 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.856 | $0.775 | $0.692 | $0.623 | ||
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.553 | $0.484 | $0.401 | $0.374 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2N2222 | Manufacturer | Central Semiconductor |
|---|---|---|---|
| Description | TRANS NPN 30V 0.8A TO-18 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 98461 pcs | Data sheet | 2N2221,2N2222 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 30V |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 50mA, 500mA | Transistor Type | NPN |
| Supplier Device Package | TO-18 | Series | - |
| Power - Max | 500mW | Packaging | Bulk |
| Package / Case | TO-206AA, TO-18-3 Metal Can | Other Names | 2N2222 LEAD FREE 2N2222 PBFREE 2N2222CS |
| Operating Temperature | -65°C ~ 200°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Transition | 250MHz |
| Detailed Description | Bipolar (BJT) Transistor NPN 30V 800mA 250MHz 500mW Through Hole TO-18 | DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V |
| Current - Collector Cutoff (Max) | 10nA (ICBO) | Current - Collector (Ic) (Max) | 800mA |
