Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > 1N5060 TR

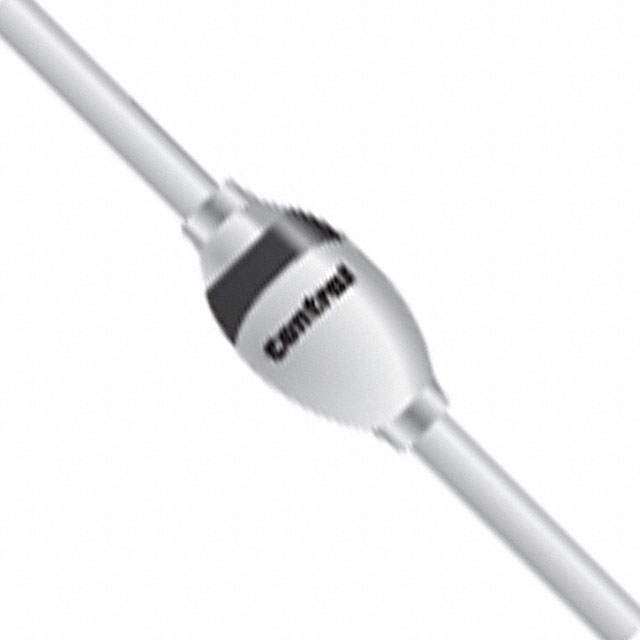

1N5060 TR

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1N5060 TR with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	1N5060 TR
Manufacturer	Central Semiconductor
Description	DIODE GEN PURP 400V 1A GPR-1A
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 82477 pcs
Reference Price (In US Dollars)	4500 pcs
Reference Price (In US Dollars)	$0.254

Product parameter
Data sheet

Product parameter

Part Number	1N5060 TR	Manufacturer	Central Semiconductor
Description	DIODE GEN PURP 400V 1A GPR-1A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	82477 pcs	Data sheet	1N5059 thru 1M5062
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.2V @ 1A
Voltage - DC Reverse (Vr) (Max)	400V	Supplier Device Package	GPR-1A
Speed	Fast Recovery = 200mA (Io)	Series	-
Packaging	Tape & Reel (TR)	Package / Case	SOD-88A, Axial
Other Names	1N5060 TR LEAD FREE 1N5060 TR PBFREE 1N5060 TR-ND 1N5060CSTR	Operating Temperature - Junction	-65°C ~ 175°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Standard	Detailed Description	Diode Standard 400V 1A Through Hole GPR-1A
Current - Reverse Leakage @ Vr	5µA @ 400V	Current - Average Rectified (Io)	1A
Capacitance @ Vr, F	15pF @ 4V, 1MHz
