Home > Products > Switches > Rocker Switches > L24D1S001-AZZ00-000

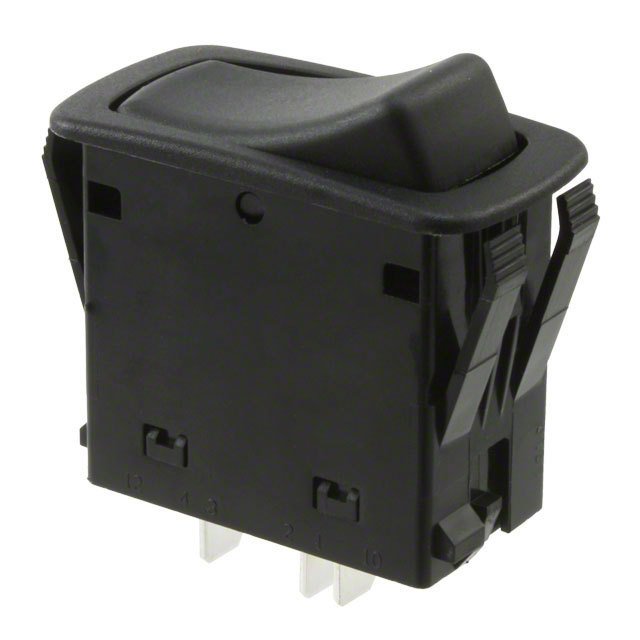

L24D1S001-AZZ00-000

L24D1S001-AZZ00-000

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy L24D1S001-AZZ00-000 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	L24D1S001-AZZ00-000
Manufacturer	Carling Technologies
Description	SWITCH ROCKER DPDT 20A 12V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 9297 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$5.064	$4.559	$4.433	$4.306
	$4.179	$4.053	$3.546	$3.356

Product parameter
Data sheet

Product parameter

Part Number	L24D1S001-AZZ00-000	Manufacturer	Carling Technologies
Description	SWITCH ROCKER DPDT 20A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9297 pcs	Data sheet	V & L Series Legend Codes L Series
Category	Switches	Voltage Rating - DC	12V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-On
Series	L	Panel Cutout Dimensions	Rectangular - 44.04mm x 22.02mm
Packaging	Bulk	Other Names	432-1276 L24D1S001AZZ00000 RCL-00000300
Operating Temperature	-40°C ~ 85°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	250,000 Cycles
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Sealed - Fully
Electrical Life	100,000 Cycles	Detailed Description	Rocker Switch DPDT 20A (DC) Panel Mount, Snap-In
Current Rating	20A (DC)	Color - Actuator/Cap	Black
Circuit	DPDT	Actuator Type	Concave (Curved)
Actuator Marking	No Marking
