Home > Products > Switches > Rocker Switches > L21D1S001-AZZ00-000

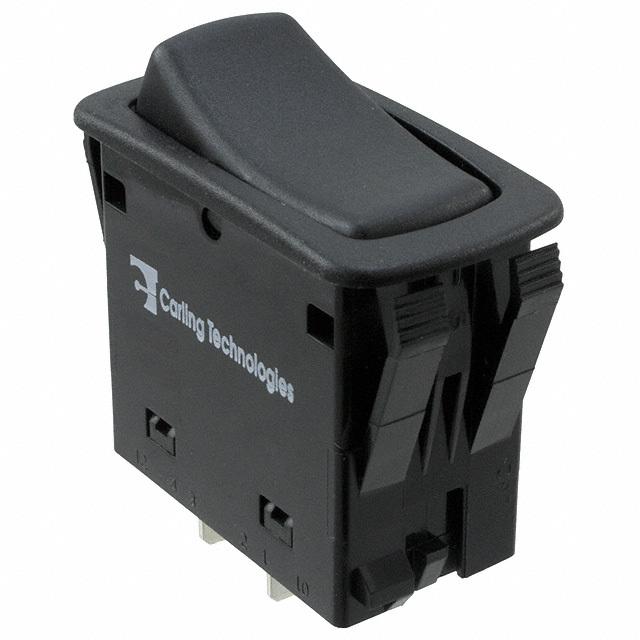

L21D1S001-AZZ00-000

L21D1S001-AZZ00-000

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy L21D1S001-AZZ00-000 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	L21D1S001-AZZ00-000
Manufacturer	Carling Technologies
Description	SWITCH ROCKER DPST 20A 12V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 12028 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$4.55	$4.094	$3.98	$3.866
	$3.753	$3.639	$3.184	$3.014

Product parameter
Data sheet

Product parameter

Part Number	L21D1S001-AZZ00-000	Manufacturer	Carling Technologies
Description	SWITCH ROCKER DPST 20A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12028 pcs	Data sheet	V & L Series Legend Codes L Series
Category	Switches	Voltage Rating - DC	12V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-Off
Series	L	Panel Cutout Dimensions	Rectangular - 44.04mm x 22.02mm
Packaging	Bulk	Other Names	432-1274 L21D1S001AZZ00000 RCL-00000338
Operating Temperature	-40°C ~ 85°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	250,000 Cycles
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Sealed - Fully
Electrical Life	100,000 Cycles	Detailed Description	Rocker Switch DPST 20A (DC) Panel Mount, Snap-In
Current Rating	20A (DC)	Color - Actuator/Cap	Black
Circuit	DPST	Actuator Type	Concave (Curved)
Actuator Marking	No Marking
