CSM4Z-A2B3C3-40-26.0D18-F

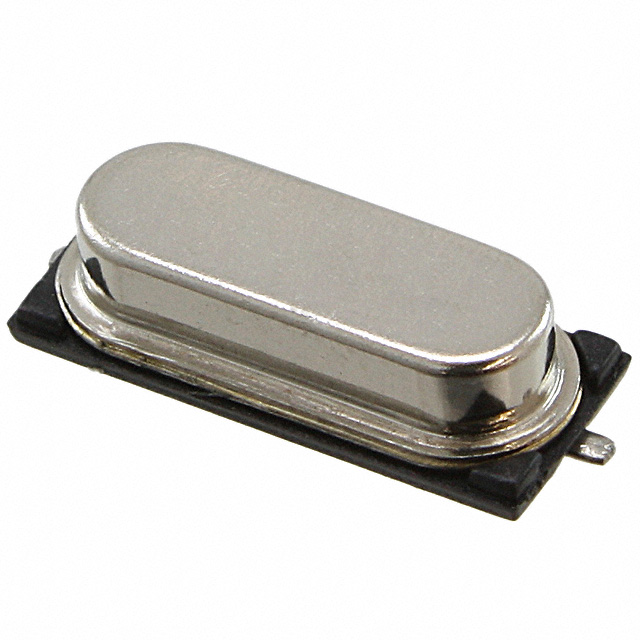

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CSM4Z-A2B3C3-40-26.0D18-F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CSM4Z-A2B3C3-40-26.0D18-F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CSM4Z-A2B3C3-40-26.0D18-F |
|---|---|
| Manufacturer | Cardinal Components |
| Description | CRYSTAL 26.0000MHZ 18PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 500 pcs |
|---|---|---|---|---|---|
| $0.241 | $0.20 | $0.18 | $0.16 | $0.152 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | CSM4Z-A2B3C3-40-26.0D18-F | Manufacturer | Cardinal Components |
|---|---|---|---|
| Description | CRYSTAL 26.0000MHZ 18PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 125742 pcs | Data sheet | CSM4, CSM5 Series |
| Category | Crystals, Oscillators, Resonators | Type | MHz Crystal |
| Size / Dimension | 0.449" L x 0.185" W (11.40mm x 4.70mm) | Series | CSM4 |
| Ratings | - | Packaging | Cut Tape (CT) |
| Package / Case | HC-49S | Other Names | 370-1144-1 |
| Operating Temperature | -40°C ~ 85°C | Operating Mode | Fundamental |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Load Capacitance | 18pF | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.138" (3.50mm) | Frequency Tolerance | ±30ppm |
| Frequency Stability | ±30ppm | Frequency | 26MHz |
| ESR (Equivalent Series Resistance) | 40 Ohms | Detailed Description | 26MHz ±30ppm Crystal 18pF 40 Ohms HC-49S |
