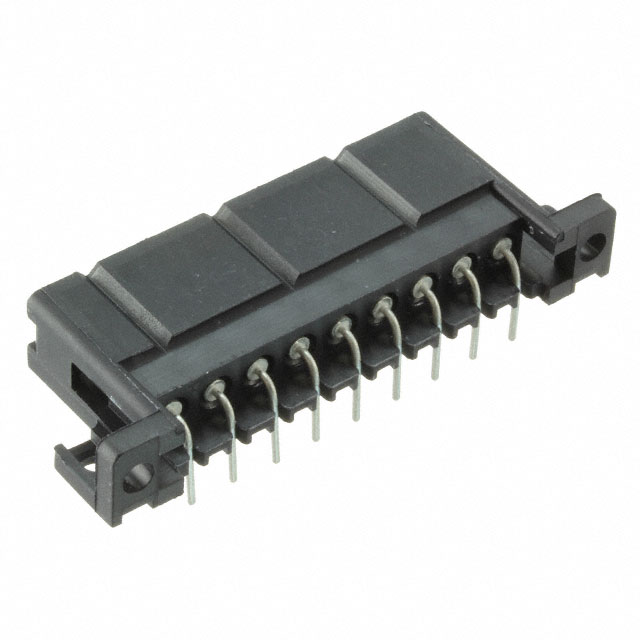

TST09RE01T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TST09RE01T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TST09RE01T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TST09RE01T |
|---|---|
| Manufacturer | Cannon |
| Description | CONN RCPT R/A PCB 9POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $3.888 | $3.718 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TST09RE01T | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN RCPT R/A PCB 9POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10017 pcs | Data sheet | Trident Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Trident Slimline |
| Row Spacing - Mating | - | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 1003-2512 192991-0323 192991-0323-ND 1929910323 TST09RE01T-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 9 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.386" (9.80mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 9 position 0.200" (5.08mm) |
| Current Rating | 10A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | - |
| Contact Length - Post | 0.157" (4.00mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Tin |
| Connector Type | Receptacle | Applications | - |
