PLC3G822A05

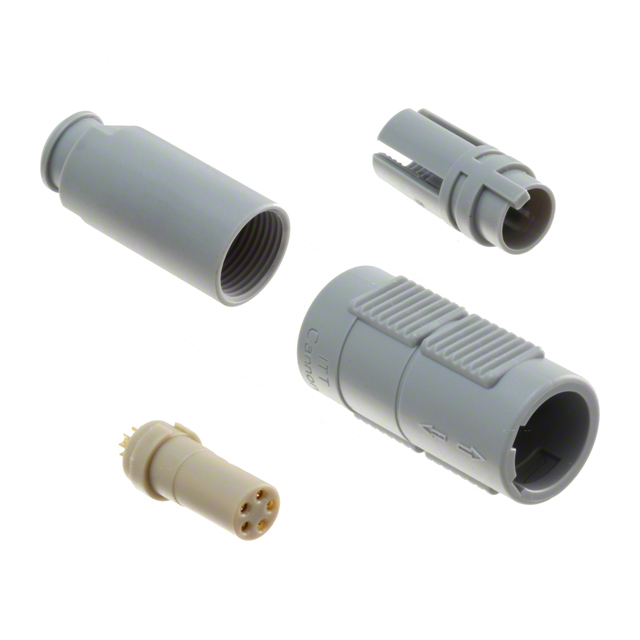

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PLC3G822A05 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PLC3G822A05 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PLC3G822A05 |
|---|---|
| Manufacturer | Cannon |
| Description | CONN RCPT FMALE 5POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 250 pcs | 500 pcs |
|---|---|---|---|---|---|
| $8.265 | $7.461 | $6.478 | $6.12 | $5.942 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | PLC3G822A05 | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN RCPT FMALE 5POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6439 pcs | Data sheet | PL Series BrochurePLC3 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 9-35 |
| Shell Material | Polysulfone (PSU) | Shell Finish | - |
| Series | PL | Packaging | Bulk |
| Other Names | 1003-2902 | Orientation | A |
| Operating Temperature | -50°C ~ 150°C | Number of Positions | 5 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Plastic |
| Ingress Protection | IP50 - Dust Protected | Features | Backshell |
| Fastening Type | Latch Lock, Push-Pull | Detailed Description | 5 Position Circular Connector Receptacle, Female Sockets Solder Cup Gold |
| Current Rating | 7A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Female Sockets | Color | Gray |
| Cable Opening | 0.157" ~ 0.205" (4.00mm ~ 5.20mm) | Backshell Material, Plating | Polysulfone (PSU) |
| Applications | Industrial, Medical, Testing Equipment & Measurement |
