PLB3G220007

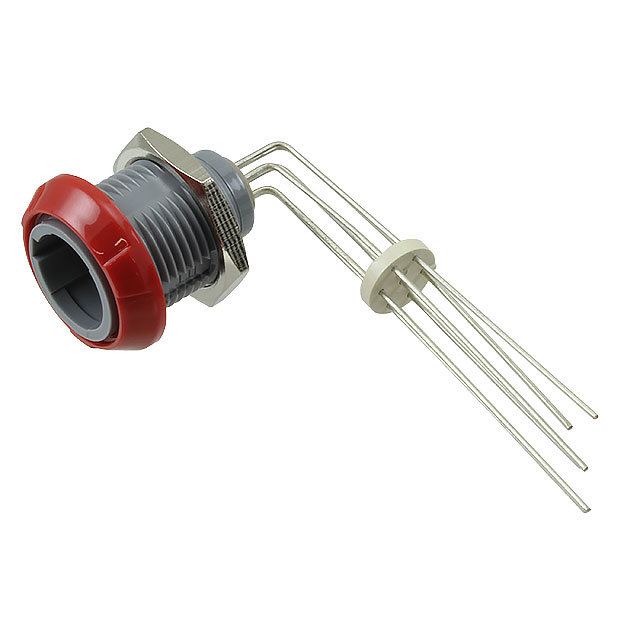

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PLB3G220007 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PLB3G220007 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PLB3G220007 |
|---|---|
| Manufacturer | Cannon |
| Description | CONN RCPT FMALE 7POS GOLD SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 250 pcs | 500 pcs |
|---|---|---|---|---|---|
| $7.938 | $7.164 | $6.22 | $5.877 | $5.706 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | PLB3G220007 | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN RCPT FMALE 7POS GOLD SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6091 pcs | Data sheet | PL Series BrochurePLB(1,3,4) Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 9-35 |
| Shell Material | Polysulfone (PSU) | Shell Finish | - |
| Series | PL | Packaging | Bulk |
| Other Names | 1003-2697 | Orientation | 0° |
| Operating Temperature | -50°C ~ 150°C | Number of Positions | 7 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Mounting Feature | Bulkhead - Front or Rear Side Nut |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyetheretherketone (PEEK) |
| Ingress Protection | IP50 - Dust Protected | Features | - |
| Fastening Type | Latch Lock, Push-Pull | Detailed Description | 7 Position Circular Connector Receptacle, Female Sockets Solder Gold |
| Current Rating | 5A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Female Sockets | Color | Gray, Red |
| Cable Opening | - | Backshell Material, Plating | - |
| Applications | Industrial, Medical, Testing Equipment & Measurement |
