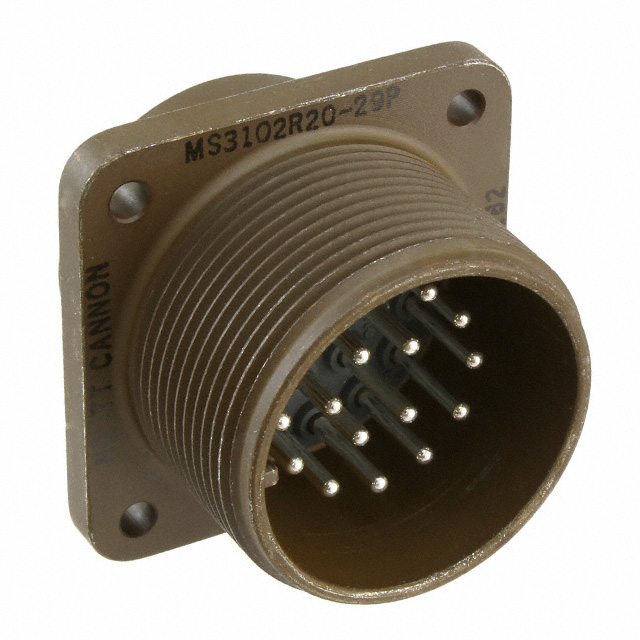

MS3102R20-29P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS3102R20-29P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MS3102R20-29P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MS3102R20-29P |
|---|---|
| Manufacturer | ITT Cannon, LLC |
| Description | CONN RCPT 17 POS BOX MNT W/PINS |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $8.435 | $7.615 | $6.612 | |||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $6.247 | $6.065 | $5.928 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MS3102R20-29P | Manufacturer | ITT Cannon, LLC |
|---|---|---|---|
| Description | CONN RCPT 17 POS BOX MNT W/PINS | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 6515 pcs | Data sheet | MS3102R20-29P Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | 500VAC, 700VDC |
| Type Attributes | Environment Resistant | Termination | Solder Cup |
| Shell Size - Insert (Convert From) | Aluminum Alloy, Olive Drab Cadmium Plated | Shell Material, Finish | - |
| Series | Military, MIL-DTL-5015, MS | RoHS Status | Bulk |
| Other Names | 024253-0025 1200-1085 1200-1085-MIL IMS3102R20-29P IMS3102R20-29P-ND MS3102R2029P |
Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 17 | Mounting Type | Panel Mount, Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Part Number | MS3102R20-29P |
| Large Diameter Supplied | 20-29 | Features | - |
| Expanded Description | 17 Position Circular Connector Receptacle, Male Pins Solder Cup Silver | Description | CONN RCPT 17 POS BOX MNT W/PINS |
| Current Rating | 22A | Current - Max/Contact | Threaded |
| Contact Material | N (Normal) | Contact Finish Thickness | Silver |
| Connector Type | Receptacle, Male Pins | Cable Diameter | - |
