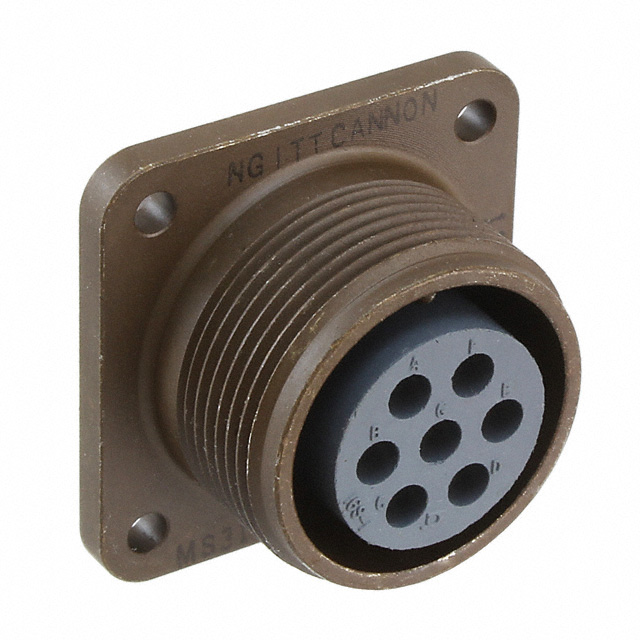

MS3102E16S-1S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS3102E16S-1S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MS3102E16S-1S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MS3102E16S-1S |
|---|---|
| Manufacturer | Cannon |
| Description | CONN RCPT FMALE 7POS SOLDER CUP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $5.508 | $5.009 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MS3102E16S-1S | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN RCPT FMALE 7POS SOLDER CUP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5945 pcs | Data sheet | MIL-DTL-5015, MS CatalogMIL-DTL-5015, MS Brochure |
| Category | Connectors, Interconnects | Voltage Rating | 500VAC, 700VDC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | 9-35 |
| Shell Material | Aluminum Alloy | Shell Finish | Olive Drab Cadmium |
| Series | Military, MIL-DTL-5015, MS | Packaging | Bulk |
| Other Names | 024250-0002 1200-1081 1200-1081-MIL IMS3102E16S-1S IMS3102E16S-1S-ND MS3102E16S1S |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 7 |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Ingress Protection | Environment Resistant | Features | - |
| Fastening Type | Threaded | Detailed Description | 7 Position Circular Connector Receptacle, Female Sockets Solder Cup Silver |
| Current Rating | 22A | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Receptacle, Female Sockets |
| Color | Olive Drab |
