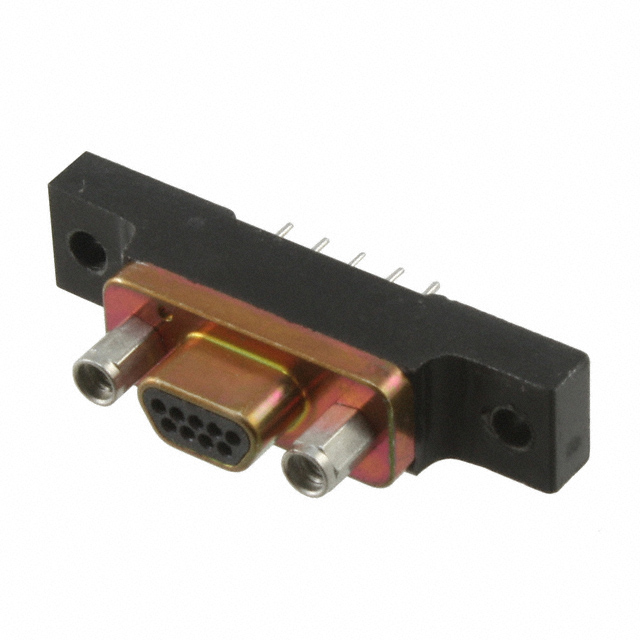

MDM-9PBSP
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MDM-9PBSP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MDM-9PBSP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MDM-9PBSP |
|---|---|
| Manufacturer | Cannon |
| Description | CONN MICRO-D PLUG 9POS PNL MNT |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $33.987 | $31.987 | $27.389 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MDM-9PBSP | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN MICRO-D PLUG 9POS PNL MNT | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 1105 pcs | Data sheet | Microminiature CatalogMDM-9PBSP |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row | Shell Material, Finish | Aluminum, Yellow Chromate Cadmium Plated |
| Series | 83513-Style Micro D Metal Shell (MDM) | Packaging | Bulk |
| Other Names | 096510-0111 1003-1275 965100111 IMDM-9PBSP IMDM-9PBSP-ND MDM-9PBSP-ND MDM9PBSP MDM9PBSP-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Panel Mount, Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Housing Material | Liquid Crystal Polymer (LCP) | Flange Feature | Mating Side, Female Screwlock (2-56) |
| Features | Shielded | Detailed Description | 9 Position D-Type, Micro-D Plug, Male Pins Connector |
| Current Rating | 3A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Type, Micro-D |
| Color | - | Backset Spacing | - |
