MDM-15SCBR

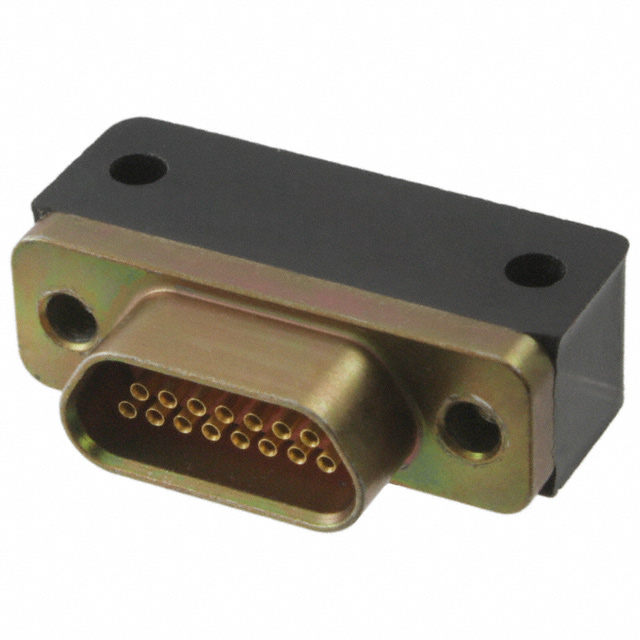

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MDM-15SCBR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MDM-15SCBR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MDM-15SCBR |
|---|---|
| Manufacturer | Cannon |
| Description | CONN MICRO-D RCPT 15POS R/A SLDR |
| Lead Free Status / RoHS Status | Not applicable / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $48.732 | $45.864 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MDM-15SCBR | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN MICRO-D RCPT 15POS R/A SLDR | Lead Free Status / RoHS Status | Not applicable / RoHS non-compliant |
| Quantity Available | 850 pcs | Data sheet | Microminiature CatalogMDM-15SCBR Datasheet096513-0226 |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row | Shell Material, Finish | Aluminum, Yellow Chromate Cadmium Plated |
| Series | 83513-Style Micro D Metal Shell (MDM) | Packaging | Bulk |
| Other Names | 096513-0226 1003-1126 965130226 IMDM-15SCBR IMDM-15SCBR-ND MDM-15SCBR-ND MDM15SCBR-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 3 | Number of Positions | 15 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Not applicable / RoHS non-compliant |
| Ingress Protection | - | Housing Material | Liquid Crystal Polymer (LCP) |
| Flange Feature | Housing/Shell (Unthreaded) | Features | Shielded |
| Detailed Description | 15 Position D-Type, Micro-D Receptacle, Female Sockets Connector | Current Rating | 3A |
| Contact Type | Signal | Contact Material | Copper Alloy |
| Contact Form | - | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Type, Micro-D | Color | - |
| Backset Spacing | - |
