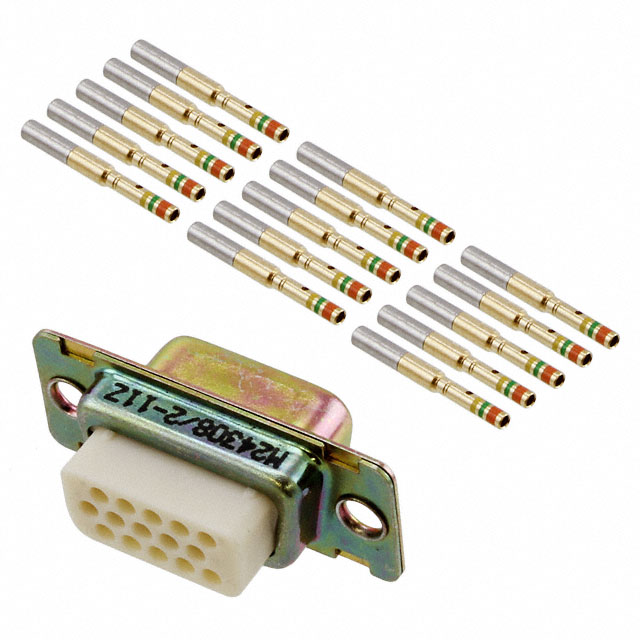

M24308/2-11Z
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M24308/2-11Z with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M24308/2-11Z with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M24308/2-11Z |
|---|---|
| Manufacturer | ITT Cannon, LLC |
| Description | CONN DSUB HD RCPT 15POS PNL MNT |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.172 | $4.702 | $4.585 | $4.232 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.997 | $3.644 | $3.409 | $3.127 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | M24308/2-11Z | Manufacturer | ITT Cannon, LLC |
|---|---|---|---|
| Description | CONN DSUB HD RCPT 15POS PNL MNT | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 10171 pcs | Data sheet | MIL-DTL-24308 |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | - |
| Voltage | - | Type Attributes | - |
| Termination | Crimp | Stacking Direction | Signal |
| Shell Size - Insert (Convert From) | Steel, Yellow Chromate Plated Zinc | Series | MIL-DTL-24308, D*MAM |
| RoHS Status | Bulk | Pitch - Connector | - |
| Other Names | 1200-1135 1200-1135-MIL 130777-0000 IM24308/2-11 IM24308/2-11-ND IM24308/2-11Z-ND M24308211Z |
Operating Temperature | -55°C ~ 150°C |
| Number of Rows | 3 | Number of Positions | 15 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 21 Weeks |
| Manufacturer Part Number | M24308/2-11Z | Length - Threaded Portion Below Head | - |
| Features | Shielded | Expanded Description | 15 Position D-Sub, High Density Receptacle, Female Sockets Connector, Panel Mount Crimp |
| Description | CONN DSUB HD RCPT 15POS PNL MNT | Current Rating (Per Contact) | Housing/Shell (Unthreaded) |
| Current Rating | 7.5A | Contact Form | 1 (DE, E) High Density |
| Contact Finish Thickness | Gold | Connector Usage | D-Sub, High Density |
| Connector Type | Receptacle, Female Sockets | Color | - |
| Cable Opening | Thermoplastic | Cable Diameter | 50µin (1.27µm) |
| Backset Spacing | - |
