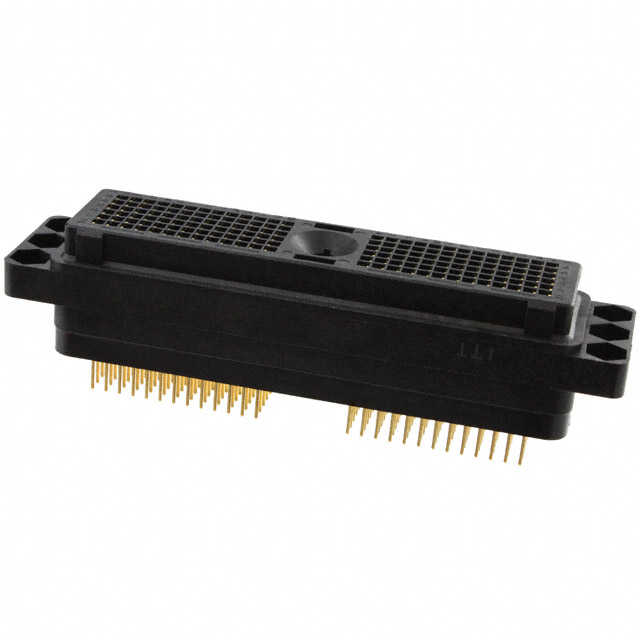

DL1-156RW-6B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DL1-156RW-6B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DL1-156RW-6B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DL1-156RW-6B |
|---|---|
| Manufacturer | Cannon |
| Description | RCPT HOUSING 156POS ZIF SQ POST |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $86.003 | $83.135 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DL1-156RW-6B | Manufacturer | Cannon |
|---|---|---|---|
| Description | RCPT HOUSING 156POS ZIF SQ POST | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 392 pcs | Data sheet | DL Series ZIF Connector Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Series | DL |
| Pitch | 0.100" (2.54mm) | Packaging | - |
| Other Names | 1003-1094 110536-1007 1105361007 DL1-156RW6B |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 6 | Number of Positions Loaded | All |
| Number of Positions | 156 | Number of Columns | - |
| Mounting Type | Panel Mount | Material Flammability Rating | UL94 V-1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Actuating Camshaft Socket, Zero Insertion Force (ZIF) |
| Current Rating | - | Contact Layout, Typical | - |
| Contact Finish Thickness | 50.0µin (1.27µm) | Contact Finish | Gold |
| Connector Usage | - | Connector Type | Receptacle, Hermaphroditic Contacts |
| Connector Style | - | Color | Black |
