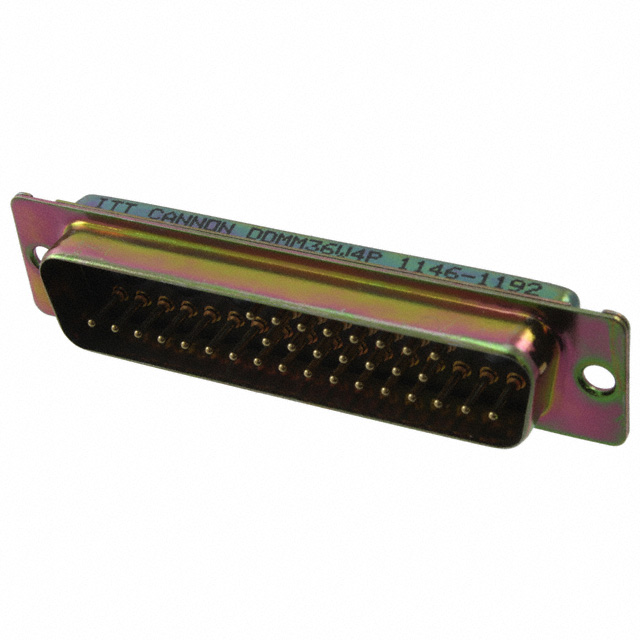

DDMM-36W4P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DDMM-36W4P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DDMM-36W4P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DDMM-36W4P |
|---|---|
| Manufacturer | Cannon |
| Description | CONN D-SUB PLUG 36POS PNL MNT |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 99 pcs | ||||
|---|---|---|---|---|---|
| $8.791 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DDMM-36W4P | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN D-SUB PLUG 36POS PNL MNT | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4157 pcs | Data sheet | DDMM36W4P |
| Category | Connectors, Interconnects | Wire Gauge | 8-26 AWG |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 5 (DD, D) - 36W4 | Shell Material, Finish | Steel, Yellow Chromate Plated Zinc |
| Series | 24308-Style, Combo D®, D*MM | Packaging | Bulk |
| Other Names | 051526-0001 1003-1810 515260001 DDMM-36W4P-ND DDMM36W4P IDDMM36W4P IDDMM36W4P-ND |
Operating Temperature | -55°C ~ 150°C |
| Number of Rows | 3 | Number of Positions | 36 (32 + 4 Coax or Power) |
| Mounting Type | Panel Mount | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Ingress Protection | - | Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Flange Feature | Housing/Shell (Unthreaded) | Features | Shielded |
| Detailed Description | 36 (32 + 4 Coax or Power) Position D-Sub, Combo Plug, Male Pins Connector | Current Rating | 7.5A |
| Contact Type | Signal and Coax or Power (Not Included) | Contact Material | Copper Alloy |
| Contact Form | Machined | Contact Finish Thickness | 50.0µin (1.27µm) |
| Contact Finish | Gold | Connector Type | Plug, Male Pins |
| Connector Style | D-Sub, Combo | Color | Black |
| Backset Spacing | - |
