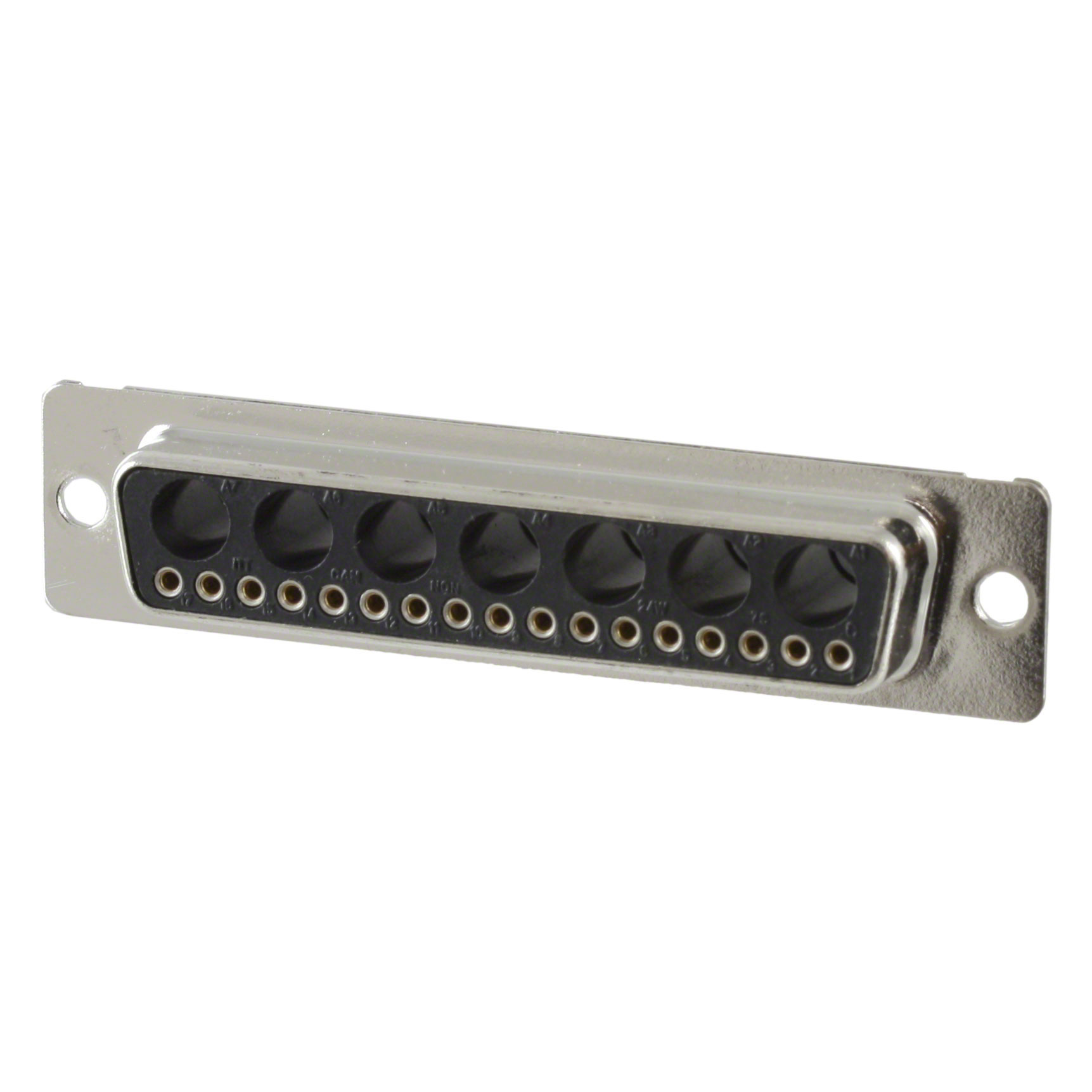

DDM-24W7S-A197
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DDM-24W7S-A197 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DDM-24W7S-A197 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DDM-24W7S-A197 |
|---|---|
| Manufacturer | Cannon |
| Description | CONN D-SUB RCPT 24POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 250 pcs | 500 pcs |
|---|---|---|---|---|---|
| $7.437 | $6.907 | $5.313 | $4.959 | $4.853 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DDM-24W7S-A197 | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN D-SUB RCPT 24POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7093 pcs | Data sheet | DDM-24W7S-A197 DatasheetCombo D Catalog |
| Category | Connectors, Interconnects | Wire Gauge | 8-26 AWG |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 5 (DD, D) - 24W7 | Shell Material, Finish | Steel, Tin-Nickel Plated |
| Series | Combo D®, D*M | Packaging | Bulk |
| Other Names | 053515-1145 1003-1076 535151145 DDM24W7SA197 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 24 (17 + 7 Coax or Power) |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Shielded | Detailed Description | 24 (17 + 7 Coax or Power) Position D-Sub, Combo Receptacle, Female Sockets Connector |
| Current Rating | 7.5A | Contact Type | Signal and Coax or Power (Not Included) |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, Combo |
| Color | Black | Backset Spacing | - |
