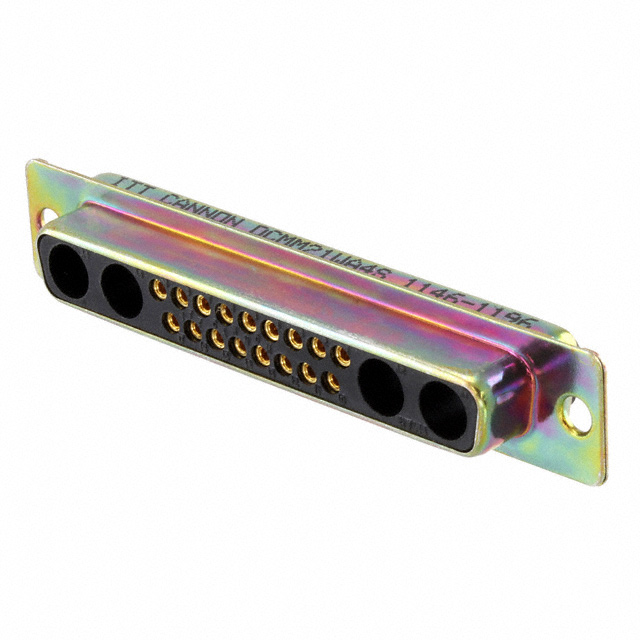

DCMM-21WA4S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DCMM-21WA4S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DCMM-21WA4S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DCMM-21WA4S |
|---|---|
| Manufacturer | Cannon |
| Description | CONN D-SUB RCPT 21POS PNL MNT |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 126 pcs | ||||
|---|---|---|---|---|---|
| $4.342 | |||||
- Product parameter
Product parameter
| Part Number | DCMM-21WA4S | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN D-SUB RCPT 21POS PNL MNT | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 8147 pcs | Data sheet | |
| Category | Connectors, Interconnects | Wire Gauge | 8-26 AWG |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 4 (DC, C) - 21WA4 | Shell Material, Finish | Steel, Yellow Chromate Plated Zinc |
| Series | 24308-Style, Combo D®, D*MM | Packaging | Bulk |
| Other Names | 051525-0009 1003-1806 515250009 DCMM-21WA4S-ND DCMM21WA4S IDCMM21WA4S IDCMM21WA4S-ND |
Operating Temperature | -55°C ~ 150°C |
| Number of Rows | 2 | Number of Positions | 21 (17 + 4 Coax or Power) |
| Mounting Type | Panel Mount | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Ingress Protection | - | Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Flange Feature | Housing/Shell (Unthreaded) | Features | Shielded |
| Detailed Description | 21 (17 + 4 Coax or Power) Position D-Sub, Combo Receptacle, Female Sockets Connector | Current Rating | 7.5A |
| Contact Type | Signal and Coax or Power (Not Included) | Contact Material | Copper Alloy |
| Contact Form | Machined | Contact Finish Thickness | 50.0µin (1.27µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub, Combo | Color | Black |
| Backset Spacing | - |
