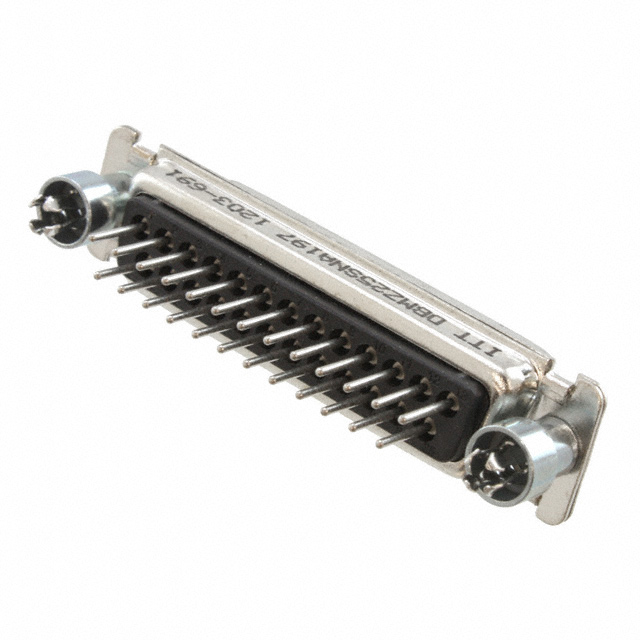

DBMZ-25S-N-A197
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DBMZ-25S-N-A197 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DBMZ-25S-N-A197 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DBMZ-25S-N-A197 |
|---|---|
| Manufacturer | Cannon |
| Description | CONN D-SUB RCPT 25P PNL MNT SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 250 pcs | 500 pcs |
|---|---|---|---|---|---|
| $7.444 | $6.72 | $5.834 | $5.512 | $5.351 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DBMZ-25S-N-A197 | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN D-SUB RCPT 25P PNL MNT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6503 pcs | Data sheet | DBMZ25SNA197 |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | Steel, Tin-Nickel Plated |
| Series | D*M | Packaging | Bulk |
| Other Names | 053513-2277 1003-1851 535132277 DBMZ-25S-N-A197-ND DBMZ25SNA197 IDBMZ25SNA197 IDBMZ25SNA197-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 25 |
| Mounting Type | Panel Mount, Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Flange Feature | Board Side (4-40) |
| Features | Board Lock | Detailed Description | 25 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 7.5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | Machined |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
