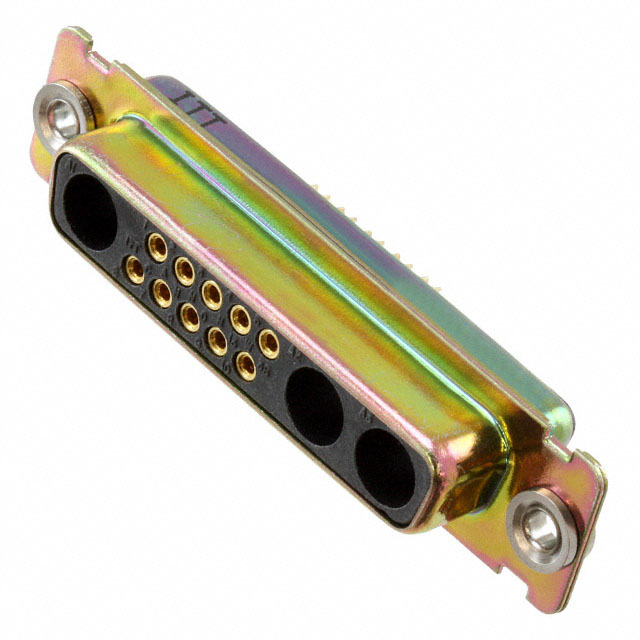

DBMMY-13W3S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DBMMY-13W3S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DBMMY-13W3S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DBMMY-13W3S |
|---|---|
| Manufacturer | Cannon |
| Description | CONN D-SUB RCPT 13POS PNL MNT |
| Lead Free Status / RoHS Status | Vendor undefined / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 250 pcs | 500 pcs |
|---|---|---|---|---|---|
| $6.454 | $5.992 | $4.609 | $4.302 | $4.21 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DBMMY-13W3S | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN D-SUB RCPT 13POS PNL MNT | Lead Free Status / RoHS Status | Vendor undefined / RoHS non-compliant |
| Quantity Available | 7390 pcs | Data sheet | DBMMY-13W3S |
| Category | Connectors, Interconnects | Wire Gauge | 8-26 AWG |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 3 (DB, B) - 13C3, 13W3 | Shell Material, Finish | Steel, Yellow Chromate Plated Zinc |
| Series | 24308-Style, Combo D®, D*MM | Packaging | Bulk |
| Other Names | 051523-0116 1003-1793 515230116 DBMMY-13W3S-ND DBMMY13W3S IDBMMY13W3S IDBMMY13W3S-ND |
Operating Temperature | -55°C ~ 150°C |
| Number of Rows | 2 | Number of Positions | 13 (10 + 3 Coax or Power) |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Vendor undefined / RoHS non-compliant | Ingress Protection | - |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Shielded | Detailed Description | 13 (10 + 3 Coax or Power) Position D-Sub, Combo Receptacle, Female Sockets Connector |
| Current Rating | 7.5A | Contact Type | Signal and Coax or Power (Not Included) |
| Contact Material | Copper Alloy | Contact Form | Machined |
| Contact Finish Thickness | 50.0µin (1.27µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, Combo |
| Color | Black | Backset Spacing | - |
