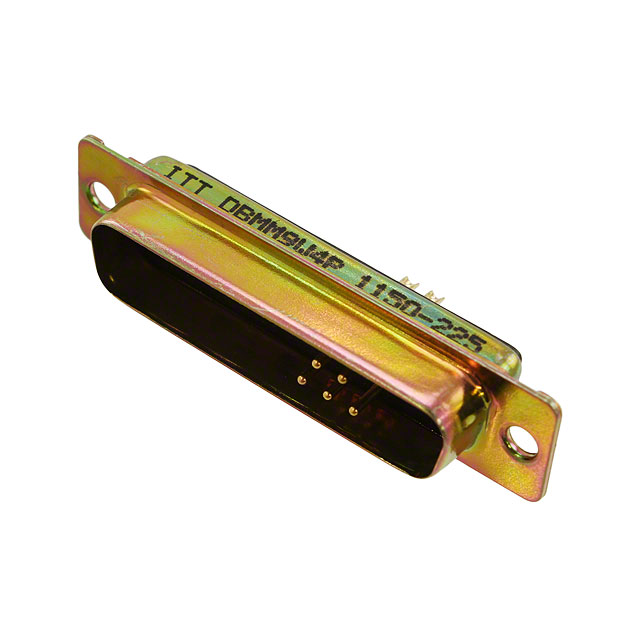

DBMM-9W4P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DBMM-9W4P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DBMM-9W4P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DBMM-9W4P |
|---|---|
| Manufacturer | Cannon |
| Description | CONN D-SUB PLUG 9POS PNL MNT |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $3.998 | $3.634 | $3.089 | |||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $2.817 | $2.635 | $2.417 | |||
- Product parameter
Product parameter
| Part Number | DBMM-9W4P | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN D-SUB PLUG 9POS PNL MNT | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 14747 pcs | Data sheet | |
| Category | Connectors, Interconnects | Wire Gauge | 8-26 AWG |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 3 (DB, B) - 9W4 | Shell Material, Finish | Steel, Yellow Chromate Plated Zinc |
| Series | 24308-Style, Combo D®, D*MM | Packaging | Bulk |
| Other Names | 051522-0004 1003-1778 515220004 DBMM-9W4P-ND DBMM9W4P IDBMM9W4P IDBMM9W4P-ND |
Operating Temperature | -55°C ~ 150°C |
| Number of Rows | 2 | Number of Positions | 9 (5 + 4 Coax or Power) |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Shielded | Detailed Description | 9 (5 + 4 Coax or Power) Position D-Sub, Combo Plug, Male Pins Connector |
| Current Rating | 7.5A | Contact Type | Signal and Coax or Power (Not Included) |
| Contact Material | Copper Alloy | Contact Form | Machined |
| Contact Finish Thickness | 50.0µin (1.27µm) | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub, Combo |
| Color | Black | Backset Spacing | - |
