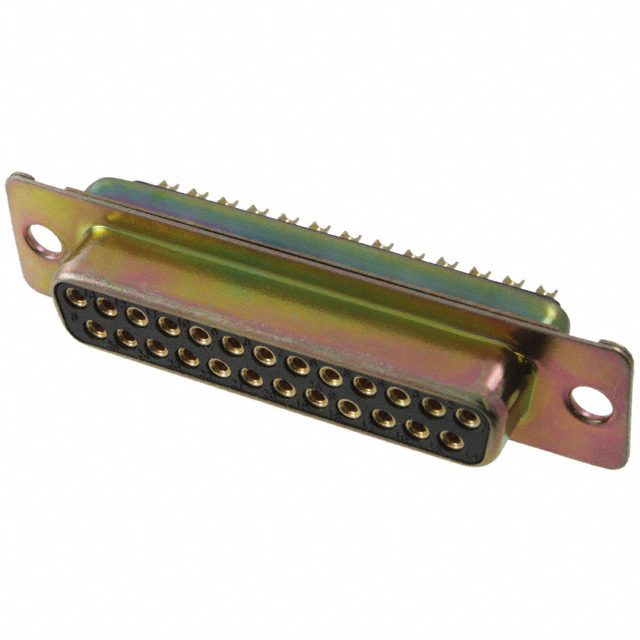

DBMM-25S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DBMM-25S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DBMM-25S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DBMM-25S |
|---|---|
| Manufacturer | Cannon |
| Description | CONN D-SUB RCPT 25POS PNL MNT |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 250 pcs | 500 pcs |
|---|---|---|---|---|---|
| $7.27 | $6.752 | $5.194 | $4.847 | $4.744 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DBMM-25S | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN D-SUB RCPT 25POS PNL MNT | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 7738 pcs | Data sheet | DBMM25S |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | Steel, Tin Plated |
| Series | 24308-Style, D*MM | Packaging | Bulk |
| Other Names | 051523-0000 1003-1784 515230000 DBMM-25S-ND DBMM25S IDBMM25S IDBMM25S-ND |
Operating Temperature | -55°C ~ 150°C |
| Number of Rows | 2 | Number of Positions | 25 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Flange Feature | Housing/Shell (Unthreaded) |
| Features | - | Detailed Description | 25 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 7.5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | Machined |
| Contact Finish Thickness | 50.0µin (1.27µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
