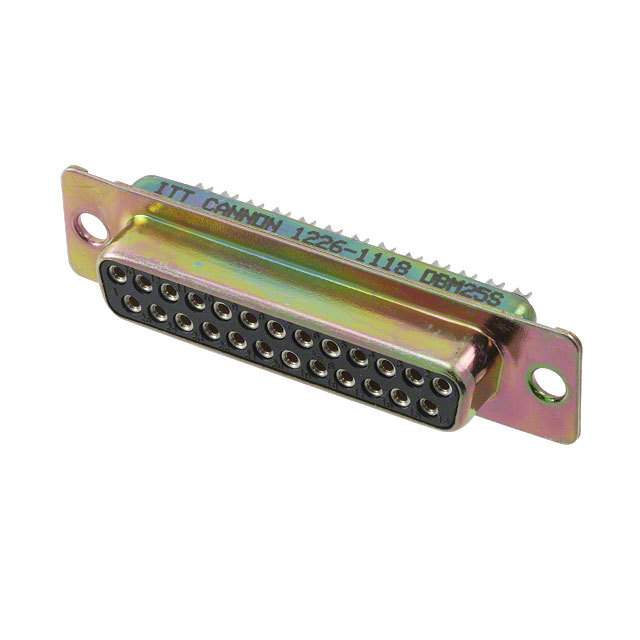

DBM-25S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DBM-25S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DBM-25S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DBM-25S |
|---|---|
| Manufacturer | Cannon |
| Description | CONN D-SUB RCPT 25POS PNL MNT |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 250 pcs | 500 pcs |
|---|---|---|---|---|---|
| $5.975 | $5.548 | $4.268 | $3.983 | $3.898 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DBM-25S | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN D-SUB RCPT 25POS PNL MNT | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 8766 pcs | Data sheet | DBM-25S |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | Steel, Yellow Chromate Plated Zinc |
| Series | D*M | Packaging | Bulk |
| Other Names | 053513-0023 1003-1845 535130023 DBM-25S-ND DBM25S IDBM25S IDBM25S-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 25 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Flange Feature | Housing/Shell (Unthreaded) |
| Features | - | Detailed Description | 25 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 7.5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | Machined |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
