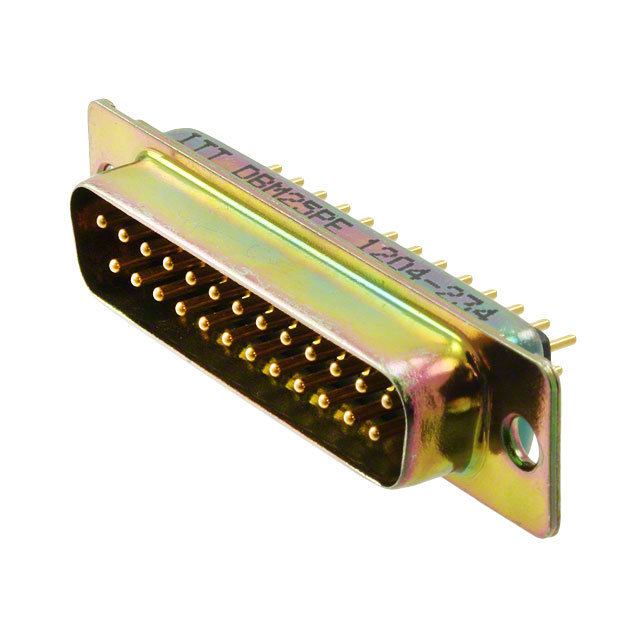

DBM-25P-E
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DBM-25P-E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DBM-25P-E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DBM-25P-E |
|---|---|
| Manufacturer | Cannon |
| Description | CONN D-SUB PLUG 25P PNL MNT SLDR |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 250 pcs | |
|---|---|---|---|---|---|
| $11.869 | $10.716 | $9.304 | $8.791 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DBM-25P-E | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN D-SUB PLUG 25P PNL MNT SLDR | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3590 pcs | Data sheet | DBM25PE |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | Steel, Yellow Chromate Plated Zinc |
| Series | D*M | Packaging | Bulk |
| Other Names | 053513-0909 1003-1846 535130909 DBM-25P-E-ND DBM25PE IDBM25PE IDBM25PE-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 25 |
| Mounting Type | Panel Mount, Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Flange Feature | Housing/Shell (Unthreaded) |
| Features | - | Detailed Description | 25 Position D-Sub Plug, Male Pins Connector |
| Current Rating | 7.5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | Machined |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
