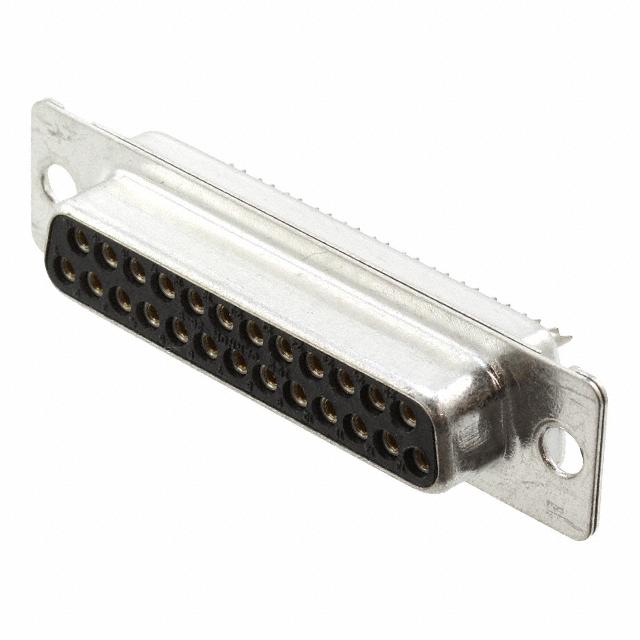

DB-25S-A197
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DB-25S-A197 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DB-25S-A197 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DB-25S-A197 |
|---|---|
| Manufacturer | Cannon |
| Description | CONN D-SUB RCPT 25POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $4.147 | $3.771 | $3.205 | |||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $2.922 | $2.734 | $2.508 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | DB-25S-A197 | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN D-SUB RCPT 25POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12726 pcs | Data sheet | DB-25S-A197 |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | Steel, Tin-Nickel Plated |
| Series | Original D | Packaging | Bulk |
| Other Names | '1210732057D 1003-1887 121073-2057 D 121073-2057 D DB-25S-A197-ND DB25SA197 IDB25SA197 IDB25SA197-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 25 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Flange Feature | Housing/Shell (Unthreaded) |
| Features | - | Detailed Description | 25 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | Machined |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
