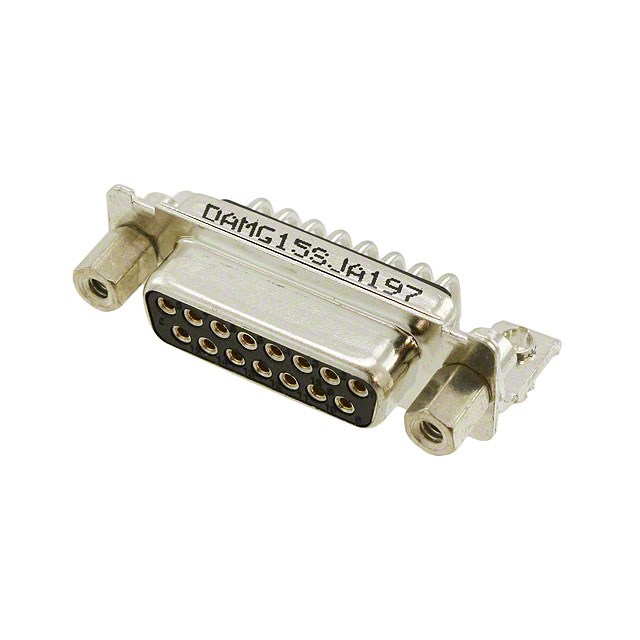

DAMG-15S-J-A197
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DAMG-15S-J-A197 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DAMG-15S-J-A197 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DAMG-15S-J-A197 |
|---|---|
| Manufacturer | Cannon |
| Description | CONN D-SUB RCPT 15POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 250 pcs | 500 pcs |
|---|---|---|---|---|---|
| $7.903 | $7.133 | $6.193 | $5.852 | $5.681 | |
- Product parameter
Product parameter
| Part Number | DAMG-15S-J-A197 | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN D-SUB RCPT 15POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6904 pcs | Data sheet | |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | Steel, Tin-Nickel Plated |
| Series | D*M | Packaging | Bulk |
| Other Names | 053512-2008 1003-1842 535122008 DAMG-15S-J-A197-ND DAMG15SJA197 IDAMG15SJA197 IDAMG15SJA197-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Flange Feature | Mating Side, Female Screwlock (4-40) | Features | Board Lock, Mounting Brackets |
| Detailed Description | 15 Position D-Sub Receptacle, Female Sockets Connector | Current Rating | 7.5A |
| Contact Type | Signal | Contact Material | Copper Alloy |
| Contact Form | Machined | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub | Color | Black |
| Backset Spacing | 0.283" (7.20mm) |
