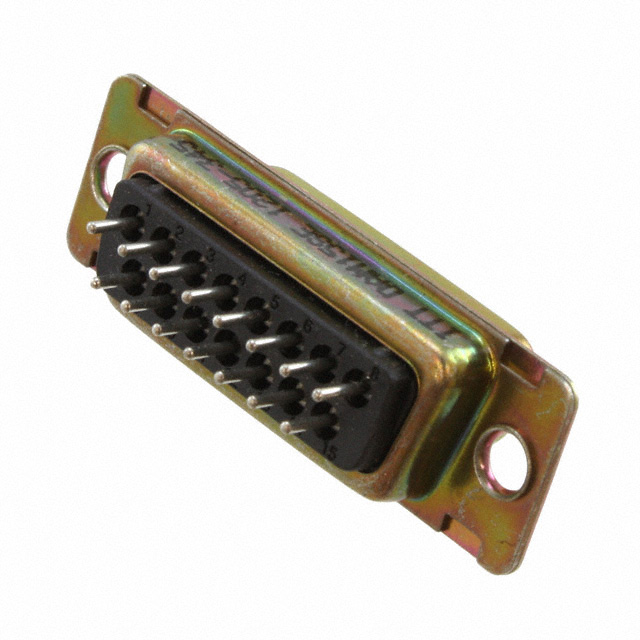

DAM-15S-E
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DAM-15S-E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DAM-15S-E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DAM-15S-E |
|---|---|
| Manufacturer | Cannon |
| Description | CONN D-SUB RCPT 15P PNL MNT SLDR |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 250 pcs | 500 pcs |
|---|---|---|---|---|---|
| $8.447 | $7.624 | $6.62 | $6.255 | $6.072 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DAM-15S-E | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN D-SUB RCPT 15P PNL MNT SLDR | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5604 pcs | Data sheet | DAM15SE |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | Steel, Tin Plated |
| Series | D*M | Packaging | Bulk |
| Other Names | 053512-1092 1003-1836 535121092 DAM-15S-E-ND DAM15SE IDAM15SE IDAM15SE-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Panel Mount, Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Flange Feature | Housing/Shell (Unthreaded) |
| Features | - | Detailed Description | 15 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 7.5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | Machined |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
