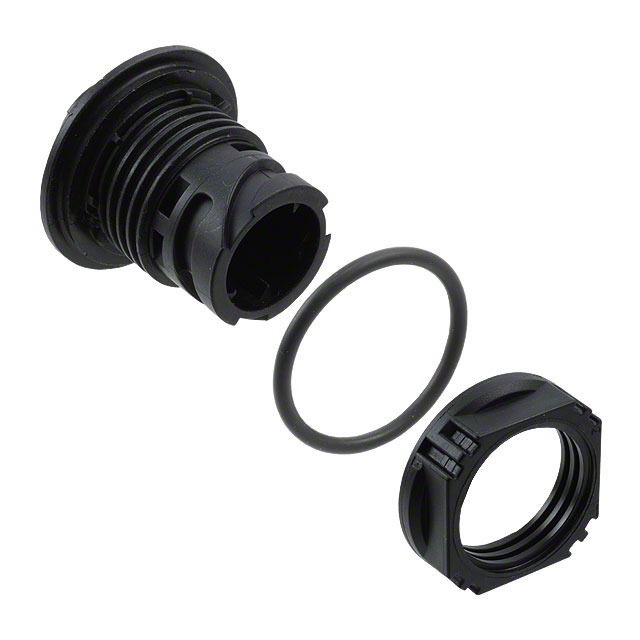

APD-1CP7
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APD-1CP7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APD-1CP7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APD-1CP7 |
|---|---|
| Manufacturer | Cannon |
| Description | CONN RCPT HSNG MALE 7POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.371 | $2.273 | $1.878 | |||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $1.68 | $1.581 | $1.384 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | APD-1CP7 | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN RCPT HSNG MALE 7POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26175 pcs | Data sheet | APD Series Catalog |
| Category | Connectors, Interconnects | Type | For Male Pins |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | - | Shell Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell Finish | - | Series | APD 6/7-Way |
| Packaging | Bulk | Other Names | 1003-2066 121583-0019 121583-0019-ND 1215830019 APD1CP7 I121583-0019 I121583-0019-ND |
| Orientation | 1 | Operating Temperature | -40°C ~ 125°C |
| Number of Positions | 7 | Note | Contacts Not Included |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polybutylene Terephthalate (PBT), Glass Filled | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 O-Ring | Housing Color | Black |
| Features | - | Fastening Type | Bayonet Lock |
| Detailed Description | 7 Position Circular Connector Receptacle Housing Panel Mount | Coupling Nut Material, Plating | - |
| Coupling Nut Diameter | - | Contact Type | Crimp |
| Contact Size | 1.6mm | Contact Shape | Circular |
| Connector Type | Receptacle Housing |
