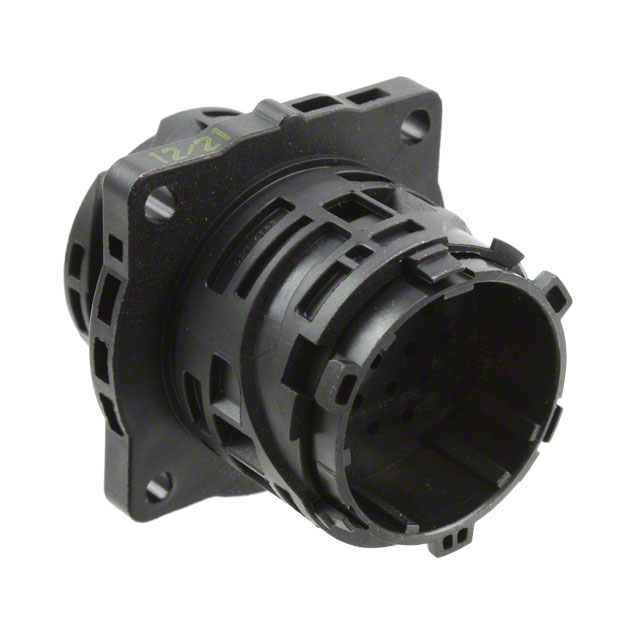

APD-1AP19S-F
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APD-1AP19S-F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APD-1AP19S-F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APD-1AP19S-F |
|---|---|
| Manufacturer | Cannon |
| Description | CONN RCPT HSNG MALE 19POS PNL MT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 250 pcs | 500 pcs |
|---|---|---|---|---|---|
| $6.957 | $6.28 | $5.453 | $5.152 | $5.001 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | APD-1AP19S-F | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN RCPT HSNG MALE 19POS PNL MT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7448 pcs | Data sheet | APD Series Catalog |
| Category | Connectors, Interconnects | Type | For Male Pins |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | - | Shell Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell Finish | - | Series | APD 19-Way |
| Packaging | Bulk | Other Names | 1003-2082 121583-0128 1215830128 |
| Orientation | 1 | Operating Temperature | -40°C ~ 125°C |
| Number of Positions | 19 | Note | Contacts Not Included |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Includes | 2 pcs - 1 Connector, 1 O-Ring |
| Housing Color | Black | Features | - |
| Fastening Type | Bayonet Lock | Detailed Description | 19 Position Circular Connector Receptacle Housing Panel Mount |
| Coupling Nut Material, Plating | - | Coupling Nut Diameter | - |
| Contact Type | Crimp | Contact Size | - |
| Contact Shape | Circular | Connector Type | Receptacle Housing |
