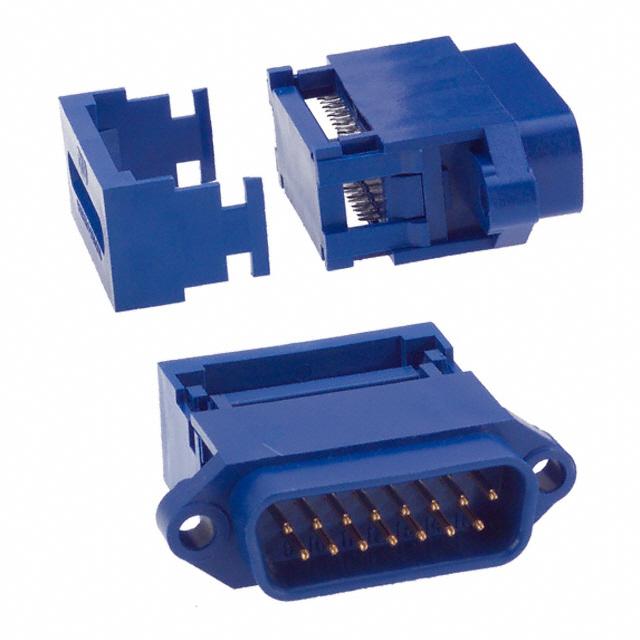

CWR-180-15-0000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CWR-180-15-0000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CWR-180-15-0000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CWR-180-15-0000 |
|---|---|
| Manufacturer | CW Industries |
| Description | CONN D-SUB RCPT 15POS STR IDC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.969 | $1.888 | $1.731 | $1.652 | $1.573 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.377 | $1.337 | $1.141 | $1.062 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CWR-180-15-0000 | Manufacturer | CW Industries |
|---|---|---|---|
| Description | CONN D-SUB RCPT 15POS STR IDC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36406 pcs | Data sheet | CWR-180-XX-0000 DrawingD-Sub Panel Layout |
| Category | Connectors, Interconnects | Wire Gauge | 28-30 AWG |
| Voltage Rating | - | Termination | IDC, Ribbon Cable |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | - |
| Series | CWR | Packaging | Bulk |
| Other Names | CMP15G CWR180150000 IDD-15P-TG IDD-C15P-TG R601 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Thermoplastic | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Feed Through, Strain Relief | Detailed Description | 15 Position D-Sub Receptacle, Male Pins Connector |
| Current Rating | 1A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Male Pins | Connector Style | D-Sub |
| Color | Blue | Backset Spacing | - |
