CWN-521-60-0060

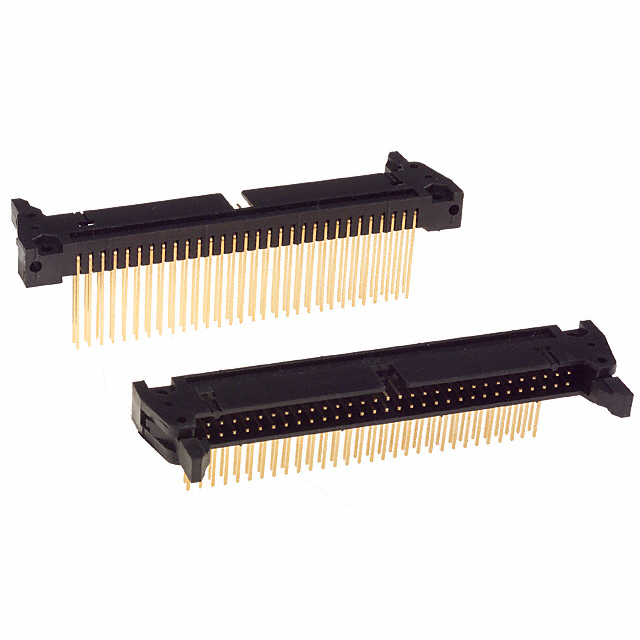

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CWN-521-60-0060 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CWN-521-60-0060 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CWN-521-60-0060 |
|---|---|
| Manufacturer | CW Industries |
| Description | CONN HDR SHROUD 60PIN RT ANG WW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $2.451 | |||||
- Product parameter
Product parameter
| Part Number | CWN-521-60-0060 | Manufacturer | CW Industries |
|---|---|---|---|
| Description | CONN HDR SHROUD 60PIN RT ANG WW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13977 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Wire Wrap | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | CWN |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | CHE60G R270 R270-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 60 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.350" (8.89mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Latch Lock/Eject Hooks, Short | Detailed Description | Connector Header Through Hole, Right Angle 60 position 0.100" (2.54mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.610" (15.49mm) | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 50.0µin (1.27µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Nickel | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
