CWN-350-26-0000

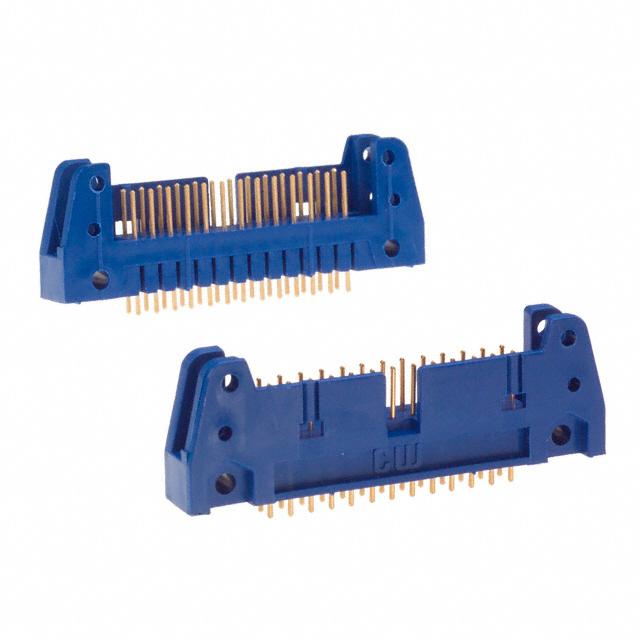

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CWN-350-26-0000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CWN-350-26-0000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CWN-350-26-0000 |
|---|---|
| Manufacturer | CW Industries |
| Description | CONN HDR 26 PIN GOLD VERT PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.046 | $1.004 | $0.836 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.711 | $0.606 | $0.544 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CWN-350-26-0000 | Manufacturer | CW Industries |
|---|---|---|---|
| Description | CONN HDR 26 PIN GOLD VERT PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 56116 pcs | Data sheet | CWN-3,-4 Header Connectors |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | CWN |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | CHS26G CWN350260000 IDH-26K-S3-T R224 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.681" (17.30mm) | Insulation Color | Blue |
| Ingress Protection | - | Features | Keying Slot, Mounting Flange |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 26 position 0.100" (2.54mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.090" (2.29mm) | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 50.0µin (1.27µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Nickel | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
