CWN-321-10-0000

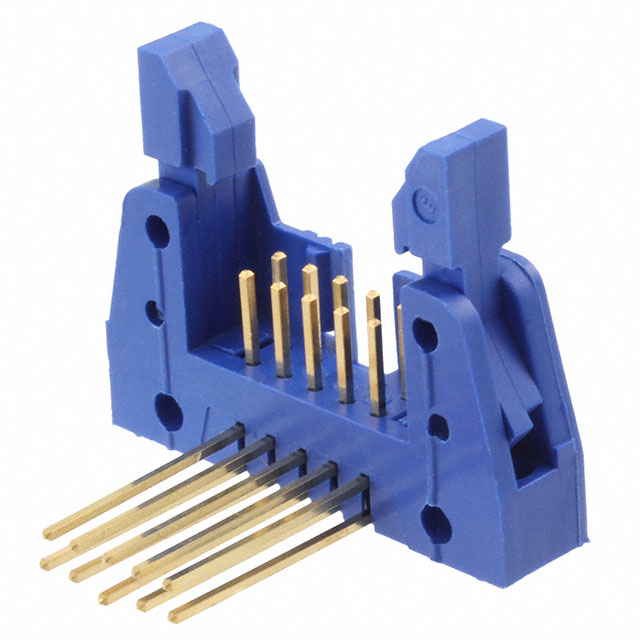

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CWN-321-10-0000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CWN-321-10-0000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CWN-321-10-0000 |
|---|---|
| Manufacturer | CW Industries |
| Description | CONN HDR 10PIN GOLD RT ANG WW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $1.104 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CWN-321-10-0000 | Manufacturer | CW Industries |
|---|---|---|---|
| Description | CONN HDR 10PIN GOLD RT ANG WW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29243 pcs | Data sheet | CWN-3(4)zz-zz-zzzz Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Wire Wrap | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | CWN |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 10 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.291" (7.40mm) |
| Insulation Color | Blue | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | Latch Lock/Eject Hooks, Short |
| Detailed Description | Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.610" (15.49mm) |
| Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness - Post | 50.0µin (1.27µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Nickel |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
