Home > Products > Power Supplies - Board Mount > DC DC Converters > VESD2-S24-D5-SIP

VESD2-S24-D5-SIP

VESD2-S24-D5-SIP

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VESD2-S24-D5-SIP with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VESD2-S24-D5-SIP
Manufacturer	CUI, Inc.
Description	DC DC CONVERTER +/-5V 2W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4773 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	VESD2-S24-D5-SIP	Manufacturer	CUI, Inc.
Description	DC DC CONVERTER +/-5V 2W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4773 pcs	Data sheet	VESD2-SIP Series
Category	Power Supplies - Board Mount	Voltage - Output 3	-
Voltage - Output 2	-5V	Voltage - Output 1	5V
Voltage - Isolation	3kV	Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V	Type	Isolated Module
Size / Dimension	0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm)	Series	VESD2-SIP
Power (Watts)	2W	Packaging	Tube
Package / Case	7-SIP Module, 5 Leads	Other Names	102-2066 656-92048R VESD2S24D5SIP
Operating Temperature	-40°C ~ 85°C	Number of Outputs	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	SCP
Efficiency	84%	Detailed Description	Isolated Module DC DC Converter 2 Output 5V -5V 200mA, 200mA 21.6V - 26.4V Input
Current - Output (Max)	200mA, 200mA	Applications	ITE (Commercial)

Related products
Related news

Related products

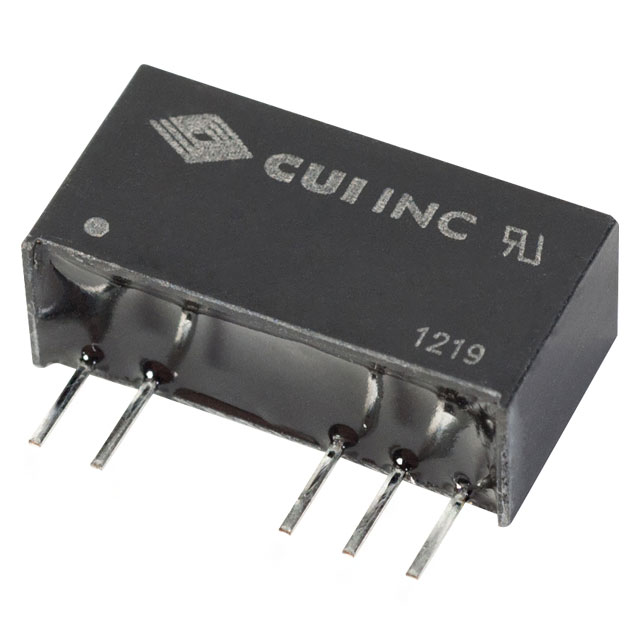

VESD2-S5-D5-SIP Image
